Crestron Flex Tabletop Large Room Video Conference System UC-M70-U

The Crestron Flex Tabletop Large Room Video Conference System UC-M70-U provides a complete video conference room solution for open‑platform UC applications. It supports a single display and features the Crestron Flex tabletop conferencing device, an enterprise-grade camera, one mic pod, cables, and power supply.

You may also check all the Video conferencing system models, we have at The TelecomShop.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging

This item comes with a 12-month manufacturer's warranty.

• Tabletop audio and video conferencing solution for any UC platform
• Simple, intuitive touch screen UX provides a consistent user experience in every room
• Present, call, conference, and collaborate using your own UC conference software (BYOD)
• Complete kit contains the Crestron Flex tabletop conferencing device, enterprise-grade camera, mic pod, cables, and power supply
• Easy to specify and install — no custom design, programming, or software installation required
• Premium‑level support with Crestron Flex Care (optional)
• Network management and provisioning and system alerts through the XiO Cloud® service
• Enterprise‑grade security ‑ connects and communicates securely over any enterprise or SMB network

• Camera Type: AVer® CAM520 PRO
• Model: AVer® CAM520 PRO
• Image Sensor: Super low light 2M pixel sensor maintains a clear and natural image in low light conditions
• Lens Focal Length: 3.9 mm (wide) ~ 47.3 mm (tele)
• Wide Field of View: 82 degree
• Lens F#: 1.8 (wide) ~ 2.8 (tele)
• Pan/Tilt/Zoom: Pan: ±170 Degree;
• Tilt: +90 Degree (up), -30 Degree (down); 18X total zoom (12X optical zoom)
• Connectivity: USB Type-C® connector
• Power: 12 VDC power adapter
• Resolution/FPS: HD 1080p at 30 fps
• Dimensions: Height: 7.17 in. (182 mm), Width: 6.02 in. (153 mm), Depth: 5.63 in. (143 mm)
• Included Components:
• CCS-UC-1-AV: Crestron Flex tabletop conferencing device; Cable, CAT5e, RJ-45-to-RJ-45, 12 ft (3.66 m); Cable management hardware
• UC-CAM-HD-520: AVer® CAM520 PRO enterprise-grade camera
• CCS-UCA-MIC: Extension microphone pod
• CBL-HD-THIN-HS-6: HDMI Cable, Thin, Type A Male-to-Male, 6 ft (1.8 m)
• CBL-HD-20: HDMI Interface Cable, 20 ft (6.1 m)
• CBL-USB-A-BMICRO-6: USB Cable, USB Type A Male to Micro-B Male cable, 6 ft (1.8 m)
• CBL-USB-A-EXT-15: USB Extension Cable, USB Type A Male-to-Female, 15 ft (4.6 m)
• PW-2420RU: Universal power supply and power cord
• STIRP: IR Emitter Probe w/3.5 mm Mini Phone Plug

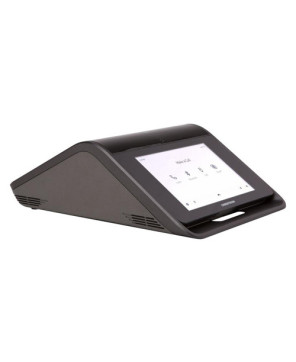

• Crestron Flex tabletop conferencing device:
• Touch Screen: 7 in. (178 mm) diagonal capacitive multi-touch TFT active matrix color LCD, 1280 x 800 pixels
• UI: Microsoft Teams Rooms UI plus optional Crestron room control UI5
• Mic Mute Symbol and Light Bar: (2) Capacitive buttons with bi-color LEDs, either button toggles between mute and unmute
• AEC: Limes Audio TrueVoice® acoustic echo cancellation, automatic mic mixing, automatic gain control, and dynamic noise reduction, full-duplex IEEE 1329 Type 1 compliant
• Speaker: Full range speaker; Amplifier Power: 11 W; 95 dB SPL at 0.5 m maximum output; Frequency Response: 90 Hz to 22 kHz
• Microphones: 360 Degree quad mic array; Pickup Range (typical): 20 ft (6 m)
• Extension Microphones: Supports two mic pods, model CCS-UCA-MIC KIT (sold separately)
• Occupancy Sensor: 6 ft (1.83 m) PIR range in front of touch screen; Ethernet: Dual-port 100 Mbps, enterprise grade security and management including IEEE 802.1X, Active Directory® authentication, LDAP, Kerberos, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), SRTP, digest access authentication, password login, HTTPS secure provisioning, XiO Cloud service, Microsoft Intune® client, primary port is IEEE 802.3at Type 2 PoE+ compliant
• USB: USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (cable included)
• Power Options: PoE+: IEEE 802.3at Type 2, Class 4 (25.5 W) PoE+ Powered Device
• 24 VDC: 24 VDC via external 100-240 VAC, 50/60 Hz power pack, model PW-2420RU
• Dimensions: Height: 4.11 in. (104 mm), Width: 8.92 in. (227 mm), Depth: 12.74 in. (324 mm), Weight: 5.5 lb (2.5 kg)
• Microphone Pod:
• Model: CCS-UCA-MIC
• Communications: A2B bus protocol, slave, synchronous data, multichannel I2S/TDM to I2S/TDM
• Microphone: Triple mic array with (3) cardioid electret elements
• Pickup Range: 20 ft (6 m) typical, 360 degree
• Mic Mute: (1) Capacitive button with bi-color LED, toggles between mute and unmute (affects all system mics)
• Connectors: (2) RJ9 4P4C connector, female
• Power: Powered via the CCS-UC-1-T-V through the A2B bus
• Dimensions: Height: 0.97 in (25 mm), Width: 3.81 in (97 mm), Depth: 3.42 in (87 mm)
• Conferencing Camera Included - Yes
• Conferencing Display Included - Yes
• Conferencing Phone Included - Yes
• Display Type - LCD
• High Definition - Yes
• Supported Resolution - 1080p (1920x1080)

• 1 x Crestron Flex Tabletop Large Room Video Conference System UC-M70-U
• User Guide
