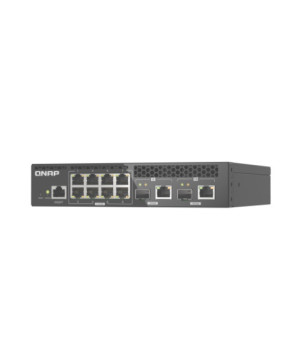

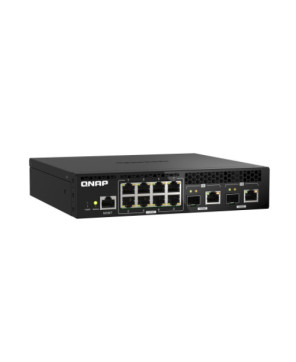

QNAP 8-Port 10GbE SFP+/10GBASE-T(2) 2.5GbE (8) Web Managed Switch QSW-M2108R-2C

The QNAP QSW-M2108R-2C is a Layer 2 Web Managed Switch with two 10GbE SFP+/RJ45 combo ports and eight 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface. This switch offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution. With a half-width design, two QSW-M2108R-2C can be installed in a 1U rack space for space-saving. This switch is compatible with 10GbE and NBASE-T technologies, supporting up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds when using existing Cat 5e and 6a cables.

You may also check all the networking switch in various brands we have at The Telecomshop.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging

This item comes with a 24-month manufacturer's warranty.

• Half-width design, 2 models in 1U
• Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
• Flexible deployment combo ports and 10GbE / NBASE-T
• Includes two 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing cables.
• The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
• Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
• One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
• Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, The QSW-M2108R-2C avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.
• QSS can be updated with just one click, helping IT staff ensure their network security.

• Management Type: Web Managed
• Number of Ports: 10
• 10GbE SFP+/RJ45 Combo Ports: 2
• 2.5GbE (RJ45): 8
• Management Port: 1 x 1GbE RJ45
• Power Supply Description: Internal Power Supply Unit
• Max. Power Consumption: 60W
• Input Power Type: AC
• Input Voltage Range: 100-240VAC, 50/60 Hz
• MAC Address Table: 16K
• Total Non-Blocking Throughput: 40Gbps
• Switching Capacity: 80Gbps
• Management Interface: Web
• Energy Efficient Ethernet (IEEE 802.3az complaint): Yes
• Fan: PWM double ball bearing fan x 1
• Form Factor: Desktop
• LED Indicators: Per Port: Speed/Link/Activity, Per System: Power/Status
• Buttons: Reset button
• Dimensions (HxWxD): 43.3 x 207 x 199.5 mm
• Weight (Net): 1.2 kg
• Weight (Gross:) 1.92 kg
• Operating Temperature: 0˚C to 40°C (32°F to 104°F)
• Relative Humidity: 5~95% Non-condensing
• Certifications: CE, FCC, VCCI, BSMI
• Electromagnetic Compliance: CLASS A
• Jumbo Frames: 9K

• 1 x QNAP 8-Port Web Managed Switch 10GbE SFP+/10GBASE-T(2) 2.5GbE (8) QSW-M2108R-2C
• Power Cord
• Rackmount Kit
• Quick Installation Guide

Do you have a question about this product? Please call 1800 90 90 99.
