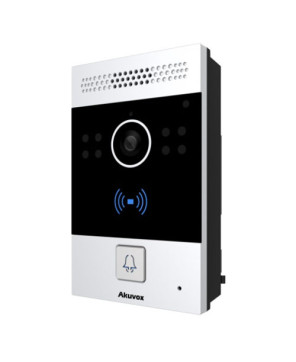

Akuvox R20A SIP Surface Mount Video Intercom and 2 Relays

The R20A leverages Power-over-Ethernet (PoE) technology (IEEE802.3af), ensuring efficient power supply through the Ethernet connection. This not only streamlines the installation process but also contributes to a cleaner and more organised setup, eliminating the need for additional power cables.

Facilitating crystal-clear communication, the R20A supports two-way audio communication over IP networks. The inclusion of an Echo Cancellation feature ensures interference-free conversations, making it easy to communicate with visitors or verify their identity without any disruptions.

With a dedicated speaker, the R20A ensures clear audio output, contributing to effective communication with visitors. This feature enhances the user experience, allowing for both audible and visual confirmation of the visitor’s identity.

The R20A offers multiple connectivity options, including an Ethernet port (RJ45, 10/100Mbps adaptive), support for 802.3af Power-over-Ethernet, and a 12V DC connector for situations where PoE is not utilised. This flexibility caters to various installation scenarios and power infrastructures.

Built to withstand diverse environmental conditions, the R20A boasts an IP65 rating, making it water-proof and dust-proof. This feature ensures reliable performance even in challenging weather conditions, enhancing the longevity of the door-phone.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 12-month manufacturer's warranty.

• 2 Video Channels, Live Stream and Intercom
• Access Card Reader 13.56MHz & 125KHz
• PBX
• Peer to Peer or Hosted Server
• PoE
• Tamper Alarm
• Motion Detection
• Call/Door Log
• LED Keys providing illumination
• Video resolution up to 720P
• 3MP 120 degree wide Angle camera
• High Intensity white LEDs for lighting during night hours with internal light sensor
• 1 x 10/100 Mbps Ethernet port
• 2V DC Adaptor (if not using PoE)
• Dimensions 90 x 145 x 41mm
• IP65 Rated

• Sensor: 1/2.7”, CMOS
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video codec: H.264
• Video resolution: up to 1920x1080
• Max. image transfer rate: 1080p – 30fps
• Viewing angle: 110°(H) / 58°(V)
• Front panel: Aluminum alloy
• Camera: 2M pixels, automatic lighting
• Button: 1 call button
• Light sensor: Support
• Infrared sensor: Support
• Wiegand port: Support
• RS485 port: Support
• RF card reader: 13.56MHz (with NFC) & 125kHz
• Relays out: 2
• Inputs: 2
• Microphone: 1
• Speaker: 1
• Ethernet port: RJ45, 10/100Mbps adaptive
• Water-proof & Dust-proof: IP65
• Installation: Flush-mounted or Wall-mounted
• Flush-mounted DIM: 189x120x56.5mm
• Wall-mounted DIM: 145x85x27.5mm
• Working Humidity: 10~90%
• Working Temperature: -30°C ~ +60°C
• Storage Temperature: -40°C ~ +70°C

• Akuvox R20A SIP Surface Mount Video Intercom and 2 Relays
• Quick Start Guide
