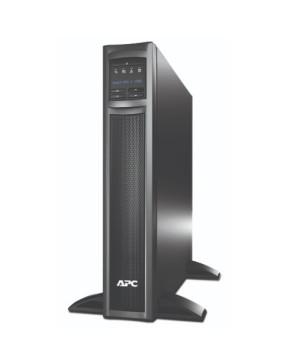

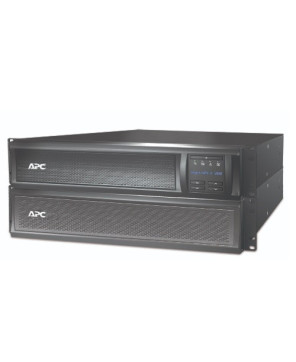

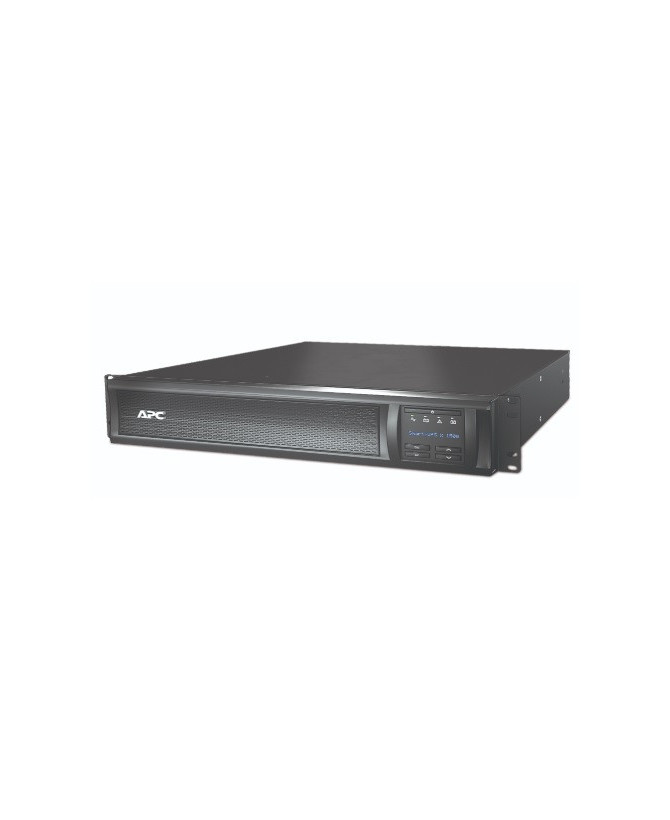

APC Smart-UPS X 1500VA Rack/Tower LCD 230V with Network Card SMX1500RMI2UNC

The APC SMX1500RMI2UNC is a Smart-UPS X 1500VA Rack/Tower LCD 230V with Network Card. This product proudly offers intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with 36 month manufacturer's warranty.

• Auto recognition of external batteries - UPS recognizes when external battery packs are attached and automatically adjusts runtime.
• Cold-start capable - Provides temporary battery power when the utility power is out.
• Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
• Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
• Network manageable - Provides remote power management of the UPS over the network.
• Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
• Resettable circuit breakers - Enables a quick recovery from overload events.

Output
• Output power capacity - 1.2kWatts / 1.5kVA
• Nominal Output Voltage - 230V
• Output Voltage Distortion - Less than 5%
• Output Frequency (sync to mains) - 50/60Hz +/- 3 Hz
• Topology - Line Interactive
• Waveform type - Sine wave
• Output Connections - (8) IEC 320 C13 (Battery Backup), (2) IEC Jumpers (Battery Backup)

Input
• Nominal Input Voltage - 230V
• Input frequency - 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections - IEC-320 C14
• Cord Length - 1.83meters
• Input voltage range for main operations - 160 - 286V
• Input voltage adjustable range for mains operation - 151 - 302V
• Number of Power Cords - 1

Batteries & Runtime
• Battery type - Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time - 3hour(s)
• Replacement Battery - APC Replacement Battery Cartridge #115 (APCRBC115)
• Expected Battery Life (years) - 3 - 5
• RBC Quantity - 1

Communications & Management
• Interface Port(s) - SmartSlot, USB
• Pre-Installed SmartSlot™ Cards - UPS Network Management Card 2 with Environmental Monitoring (AP9631)
• Control panel - Multi-function LCD status and control console
• Audible Alarm - Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
• Emergency Power Off (EPO) - Yes

Surge Protection and Filtering
• Surge energy rating - 645Joules
• Filtering - Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

• APC Smart-UPS X 1500VA Rack/Tower LCD 230V with Network Card SMX1500RMI2UNC
• CD with software
• Documentation CD
• Installation guide
• Rack Mounting support rails
• Removable support feet
• Smart UPS signalling RS-232 cable
• USB cable
