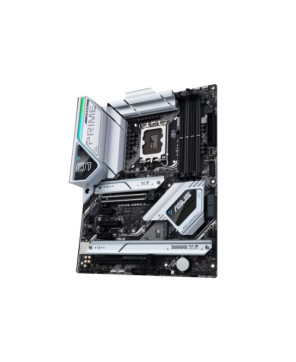

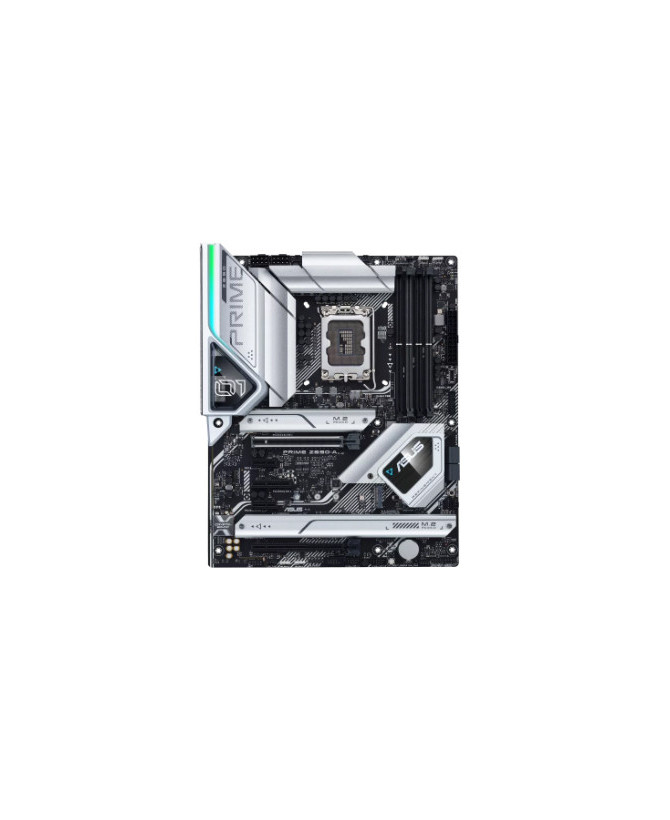

Asus PRIME Z690-A Intel LGA 1700 ATX Motherboard
The Asus PRIME Z690-A Intel LGA 1700 ATX Motherboard provides robust functionality enabling you to install resource-demanding components such as high-end RAM modules and graphics cards.
The Asus PRIME Z690-A Intel LGA 1700 ATX Motherboard is an Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, four M.2 slots, 16+1 DrMOS power stages, DDR5, HDMI®, DisplayPort™, Intel 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 header and Aura Sync RGB lighting. Designed for gaming enthusiasts, the PRIME Z690-A provides robust functionality enabling you to install resource-demanding components such as high-end RAM modules and graphics cards.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 36-month manufacturer's warranty.
FEATURES
• Intel® LGA 1700 socket: Ready for 12th Gen Intel processors
• Enhanced power solution: 16+1 DrMOS, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
• AI Overclocking: Optimizes performance based on CPU and cooler loads to achieve results that are extremely close to manual tuning by experts
• AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
• Two-Way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
• Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, M.2 backplate with Q-Latch, hybrid fan headers and Fan Xpert 4
• Next-gen connectivity: DDR5 memory, PCIe® 5.0, Intel 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ 4 header support, 4 PCIe® 4.0 M.2
QUICK SPECIFICATIONS
CPU
• Chipset: Intel Z690
• CPU Socket: LGA 1700
Back Panel I/O
• USB:
- 1 x USB 3.2 Gen 2x2 Type-C
- 1 x USB 3.1 / USB 3.2 Gen 2 Type-C
- 2 x USB 3.1 / USB 3.2 Gen 2 Type-A
- 4 x USB 3.1 / USB 3.2 Gen 1 Type-A
• Thunderbolt: None
• Display:
- 1 x DisplayPort
- 1 x HDMI 2.1
• Audio:
- 5 x 3.5 mm
- 1 x S/PDIF
• Ethernet / Controller:
- 1 x Intel 2.5Gigabit
Memory
• Memory Slots: 4 x 288-Pin
• Memory Support: DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000 MHz
• Maximum Capacity: 128 GB
• Channel Architecture: Dual Channel
• ECC Support: Non-ECC Unbuffered
Storage Expansion
• SATA: 4 x SATA III
• M.2:
- 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
- 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
- 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))
• RAID Support:
- RAID 0, 1, 5 (M.2)
- RAID 0, 1, 5, 10 (M.2)
Internal I/O
• Expansion Slots:
- 1 x PCIe 5.0 x16
- 1 x PCIe 3.0 x16 (x4 mode)
- 1 x PCIe 3.0 x4
- 2 x PCIe 3.0 x1
• USB:
- 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)
- 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
- 2 x USB 2.0 Header (Supports 4 USB Type-A Port)
• Air Cooling:
- 1 x 4-Pin CPU
- 1 x 4-Pin Assistant
- 4 x 4-Pin System
- 1 x Thermal Sensor
• Liquid Cooling: 2 x 4-Pin Pump
• Power Connectors:
- 1 x 24-Pin Mainboard
- 2 x 8-Pin ATX
• Security: Clear CMOS, Power, Voltage Regulation
• LED Header: 4 x RGB
• Audio: None
• Diagnostics: Clear CMOS
• Add-On: 1 x Thunderbolt Header
• Legacy: 1 x Serial
BIOS
• ROM: 256 Mb
Front Panel I/O
• I/O Connection Headers: AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2
Audio
• Audio Codec: Realtek S1220A (7.1-Channel)
Software
• Supported Operating Systems; Windows 10 (64-Bit)
Physical
• Form Factor: ATX
• Dimensions: 9.6 x 12" / 24.4 x 30.5 cm
WHAT'S INCLUDED
• 1x Asus PRIME Z690-A Intel LGA 1700 ATX Motherboard
• User Guide
