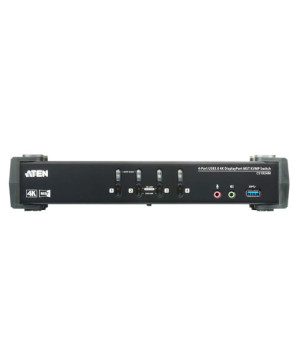

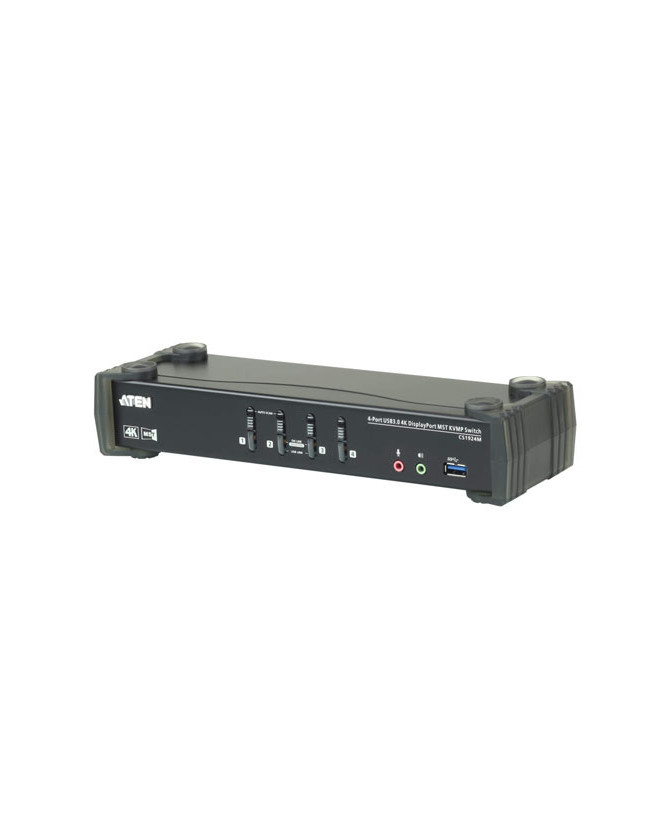

Aten 4-Port USB 3.0 4K DisplayPort MST KVMP Switch CS1924M-AT-U
The Aten 4-Port USB 3.0 4K DisplayPort MST KVMP Switch CS1924M-AT-U delivers seamless multi-computer control with ultra-high-definition 4K video support and MST functionality. Designed for productivity, it allows a single console to manage up to four DisplayPort-enabled computers while providing fast USB 3.0 peripheral sharing. With reliable switching, intuitive port selection, and robust ATEN engineering, this KVMP switch ensures professional-grade performance, making it ideal for workstations, design studios, and IT environments that demand efficiency and precision.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 24-month manufacturer's warranty.
FEATURES
World’s First DisplayPort KVM Switch with Built-in MST Hub
- One USB keyboard/mouse and DisplayPort or HDMI monitor control 4 computers and 2 USB peripherals
- Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source
- Supports MST Mode, Splitter Mode, and Single Port Mode
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds
- DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
- Firmware upgradeable
- Hot pluggable – add or remove computers without powering down the switch
Remarkable Audio/Video Experience
- Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
- DisplayPort 1.2 compliant, HDCP 1.3 compliant
- Supports HD audio through DisplayPort
- Full bass response for high-quality 2.1 channel surround sound systems
Intelligent Operation
- Computer selection via front panel pushbuttons, hotkeys, mouse, and RS-232 commands
- Independent switching of KVM, USB hub, and Audio focus
- Power On Detection – if a computer is powered off, the CS1924M automatically switches to the next powered-on computer
- Auto Scan Mode for monitoring all computers
Versatile Compatibility
- Keyboard emulation/bypass feature supports most gaming keyboards
- Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
- Multi-platform support – Windows, Mac, and Linux
- Multilingual keyboard mapping supports English, Japanese, French and German keyboards
Note:
MST requires either monitors capable of DisplayPort 1.2 daisy-chaining or a powered MST Hub. DisplayPort Dual-Mode (DP++) does not require an active adapter for most single display setups. HD audio cannot be switched independently. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
World’s First DisplayPort KVM Switch with Built-in MST Hub
- One USB keyboard/mouse and DisplayPort or HDMI monitor control 4 computers and 2 USB peripherals
- Built-in Multi-Stream Transport (MST) hub allows dual displays (DisplayPort / HDMI) from a single DisplayPort source
- Supports MST Mode, Splitter Mode, and Single Port Mode
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer speeds
- DisplayPort Dual-Mode (DP++) technology supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
- Firmware upgradeable
- Hot pluggable – add or remove computers without powering down the switch
Remarkable Audio/Video Experience
- Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
- DisplayPort 1.2 compliant, HDCP 1.3 compliant
- Supports HD audio through DisplayPort
- Full bass response for high-quality 2.1 channel surround sound systems
Intelligent Operation
- Computer selection via front panel pushbuttons, hotkeys, mouse, and RS-232 commands
- Independent switching of KVM, USB hub, and Audio focus
- Power On Detection – if a computer is powered off, the CS1924M automatically switches to the next powered-on computer
- Auto Scan Mode for monitoring all computers
Versatile Compatibility
- Keyboard emulation/bypass feature supports most gaming keyboards
- Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
- Multi-platform support – Windows, Mac, and Linux
- Multilingual keyboard mapping supports English, Japanese, French and German keyboards
Note:
1. MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort 1.2 daisy-chaining or the use of a powered DisplayPort MST Hub. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain. The PC source must be DisplayPort 1.2 compliant.
2. DisplayPort Dual-Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
3. For a DisplayPort 1.4 compliant display device, make sure to configure the device set to be compatible with DisplayPort 1.2 to avoid compatibility issues.
4. HD audio through DisplayPort cannot be switched independently.
5. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
QUICK SPECIFICATIONS
- Computer Connections: 4
- Port Selection: Hotkey, Pushbutton, Mouse, RS-232 Commands
- Connectors
- Console Ports: 2 x USB Type A Female, 1 x DisplayPort Female (Black), 1 x HDMI Female (Black), 2 x 3.5mm Audio Jack Female (Green; 1 front, 1 rear), 2 x 3.5mm Audio Jack Female (Pink; 1 front, 1 rear), 1 x RJ-11 Female
- KVM (Computer) Ports: 4 x USB3.1 Gen1 Type B Female (Blue), 4 x DisplayPort Female (Black), 4 x 3.5mm Audio Jack Female (Green), 4 x 3.5mm Audio Jack Female (Pink)
- Power: 1 x DC Jack
- USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 front panel; 1 rear panel)
- Switches
- Selected: 4 x Pushbutton
- LEDs
- On Line / Selected: 4 (Orange)
- USB Link: 4 (Green)
- Emulation: USB
- Video: 4096 x 2160 @ 60Hz
- Scan Interval: 1-99 seconds (Default: 5 seconds)
- Power Consumption: DC5V: 4.89W: 66BTU
- Environmental
- Operating Temperature: 0-50°C
- Storage Temperature: -20-60°C
- Humidity: 0-80% RH, Non-condensing
- Physical Properties
- Housing: Metal, Plastic
- Weight: 0.92 kg (2.03 lb)
- Dimensions (L x W x H): 27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
- Note: For some rack mount products, the standard dimensions of WxDxH are expressed using LxWxH format.
WHAT'S INCLUDED
- Aten 16-Port Multi-Interface Cat 5 KVM Switch KH1516A-AX-U
- 1x Firmware Upgrade Cable
- 1x Power Cord
- 1x Rack Mount Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
Do you have a question about this product? Please call 1800 90 90 99.
