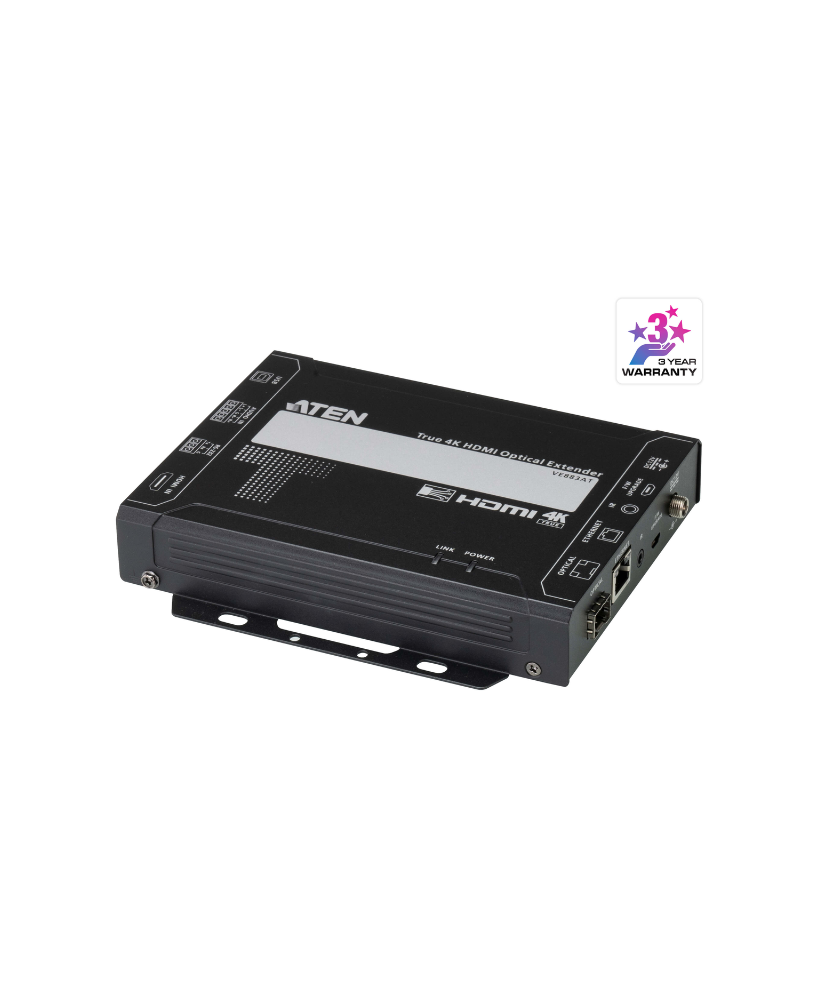

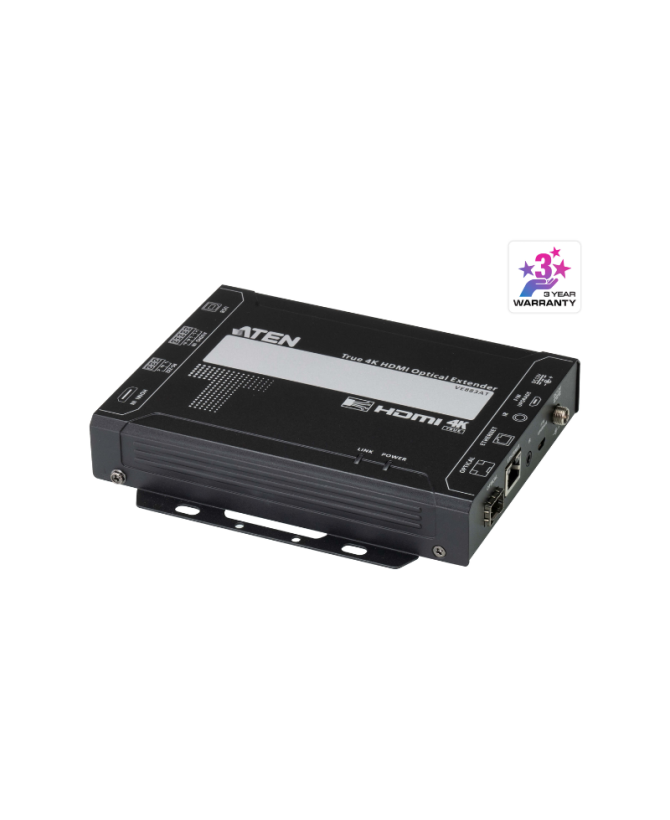

Aten VE883AK2-AT-U True 4k @ 10KM HDMI Single-mode Optical Extender
The Aten VE883AK2-AT-U HDMI Single-mode Optical Extender delivers true 4K video up to 10 km with bi-directional IR/RS-232 and USB control, HDCP 2.2/2.3 compliance, advanced scaling, and seamless switching for professional AV applications.
The Aten VE883AK2-AT-U True 4K HDMI Single-mode Optical Extender transmits 4K@60Hz signals up to 10 km over fiber with bi-directional IR, RS-232, and USB control. It features high-speed data transfer, HDMI LockPro support, video scaling for optimal display, and plug-and-play operation. Designed with Seamless Switch™, FrameSync, and ESD protection, it ensures stable, interference-free video delivery for professional AV installations.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 36-month manufacturer's warranty.
FEATURES
- Extends HDMI, RS-232, IR, and USB signals over single-mode fiber up to 10 km
- Supports true 4K@60Hz 4:4:4 video with HDCP 2.2/2.3 compliance
- Scaler ensures optimal output for different resolutions and avoids black screens
- Seamless Switch™ for real-time, stable video switching
- Video Wall profiles allow customizable layouts via intuitive GUI
- HDBaseT Anti-jamming resists signal interference
- Bi-directional RS-232, IR, and USB control channels for device management
- Cable quality tester to monitor signal integrity
- FrameSync synchronizes input/output frame rates to prevent tearing
- Remote firmware upgrades, plug-and-play, and rack-mountable design
- Built-in 8KV / 15KV ESD protection for enhanced reliability
QUICK SPECIFICATIONS
- Video Input: 1 x HDMI Type A Female (Black), 100 Ω, up to 5 m
- Video: Max Data Rate 10.2 Gbps per lane; Max Pixel Clock 594 MHz
- Compliance: HDMI (3D, Deep Color, 4K), HDCP 2.2/2.3 Compatible
- Max Resolution: 4096x2160@60Hz (4:4:4) / 3840x2160@60Hz (4:4:4)
- Max Distance: 4Kx2K/60Hz up to 10 km via Single-mode fiber (SM, Blue)
- Connectors: Bi-directional SFP (LC), Micro USB for firmware, DC Jack with locking
- Control: USB Type B, RS-232 3-pole terminal block, IR mini stereo jack (30-56 kHz), Ethernet RJ-45
- Power Consumption: DC12V: 5.57W / 26 BTU/h
- Environmental: Operating 0-40°C, Storage -20-60°C, Humidity 0-80% RH
- Physical: Metal housing, Weight 0.67 kg, Dimensions with bracket 16.94 x 14.69 x 3.00 cm
WHAT'S INCLUDED
- 1x VE883AK2-AT-U True 4K @ 10KM HDMI Single-mode Optical Extender
- 1x Power adapter and power cord
- 1x 3-pole terminal block
- 1x 5-pole terminal block
- 1x IR receiver
- 1x IR emitter
- 1x USB Type-B to USB Type-A cable
- 1x HDMI LockPro
- 1x SFP module
- 1x User instructions
Do you have a question about this product? Please call 1800 90 90 99.
The Aten VE883AK2-AT-U HDMI Single-mode Optical Extender delivers true 4K video up to 10 km with bi-directional IR/RS-232 and USB control, HDCP 2.2/2.3 compliance, advanced scaling, and seamless switching for professional AV applications.
