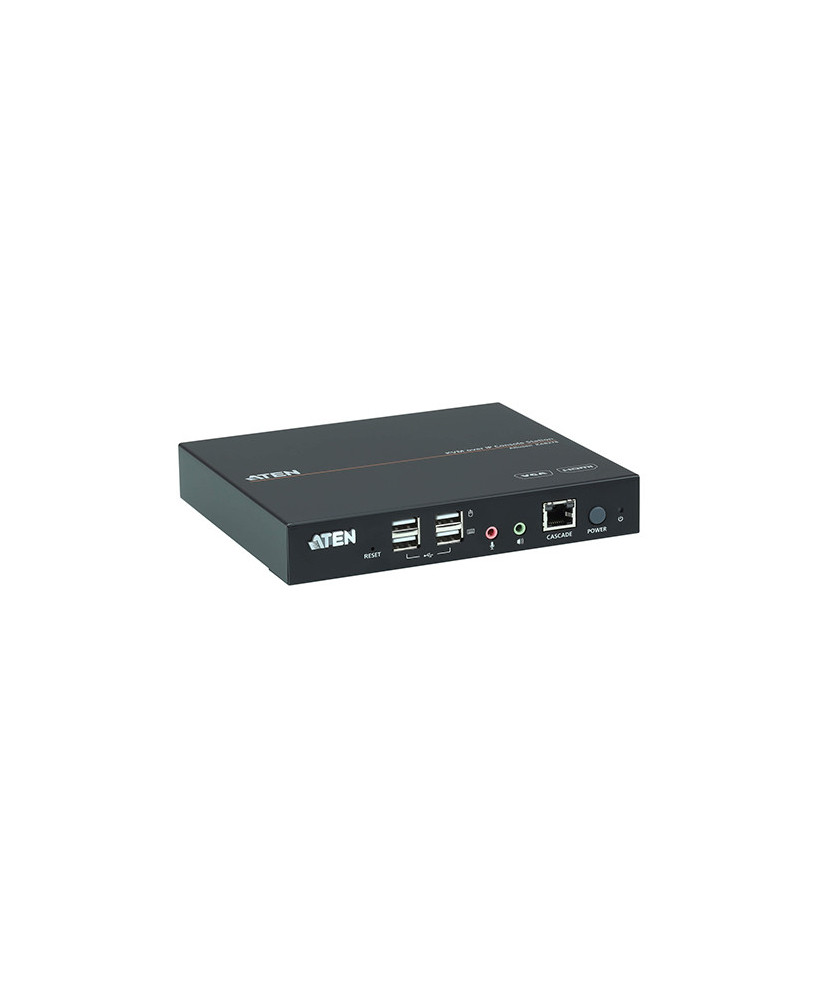

Aten VGA/HDMI KVM over IP Console Station KA8278-AX-U

The Aten VGA/HDMI KVM over IP Console Station KA8278-AX-U is a standalone console that replaces PC or NB, allowing users to remotely access, monitor, and control all servers connected to multiple ATEN’s KVM over IP switches with impenetrable security against virus threats. It also supports various data encryption methods, ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required and is perfect for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC). It can be set on a desk, mounted on a wall, or at the rear of a rack with its space-saving 0U rackmount design. This KVM over IP Console Station is flexible and easy to install and provides a GUI with a multi-language interface for device management, user profile customization, as well as hassle-free configuration for large deployments.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 36-month manufacturer's warranty.

• A standalone Java-free console that replaces PC or NB, enabling users to remotely access and control ATEN’s KVM over IP switches
• Impenetrable security against virus threats and impervious data protection
• Single sign-on to consolidate the management of multiple ATEN’s KVM over IP switches
• Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
• Supports 1 VGA plus 1 HDMI video outputs – enables users to multitask across two displays with a single keyboard and mouse
• Panel Array Mode™ – allows administrators to monitor the video output of up to 64 servers on one screen simultaneously
• Supports Boundless Switching – allows users to control up to 4 screens between two console stations by using one set of keyboard & mouse
• Extended desktop – supports extended display for remotely connected PCs on the dual screens of KA8278
• Share screen – shares screen content from one console station to another for real-time collaboration
• Supports Telnet / SSH for connecting to and management of console devices
• Lock screen password – prevents unauthorized users from accessing the console station when unattended
• Supports Virtual Media
• Supports USB Smartcard
• Wall Mountable – standard mounting kit included
• Space-saving 0U rack mount design for rear rack mounting
• GUI with multi-language interface

• Connectors: - Video: 1 x HDB-15 Female, 1 x HDMI Female
- RS-232: 1 x DB-9 Male
- Power: 1 x DC Jack
- Audio: 2 x Audio Jack Female
- LAN Ports: 1 x RJ-45 Female
- Keyboard: 1 x USB Type-A Female
- Mouse: 1 x USB Type-A Female
- USB Port: 2 x USB Type-A Female
- Cascade Port: 1 x RJ-45 Female
• LEDs:
- Power: 1 (Blue)
• Switches:
- Power: 1 x Push button
- Reset: 1 x Semi-recessed Push button
• Video: 1920 x 1200 @ 60Hz
• Power Consumption: DC 5V:6.53W:56.18BTU
• Physical Properties:
- Housing: Metal
- Weight: 0.80 kg ( 1.76 lb )
- Dimensions (L x W x H): 17.42 x 15.54 x 2.88 cm
• Compatible Appliances:
- KVM over IP switches: KN1132V, KN2116VA, KN4116VA, KN2132VA, KN4132VA, KN4164V, KN8132V, KN8164V, KN2124VA, KN4124VA, KN2140VA, KN4140VA, CN8000A, KN1000A. KN1108VA, KN1116VA, KL1108V, KL1116V, CN9600

• 1x KA8278 VGA/HDMI KVM over IP Console Station
• 1x Power Adapter
• 1x Power Cord
• 1x Mounting Kit
• 1x Foot Pad Set
• User Instructions
