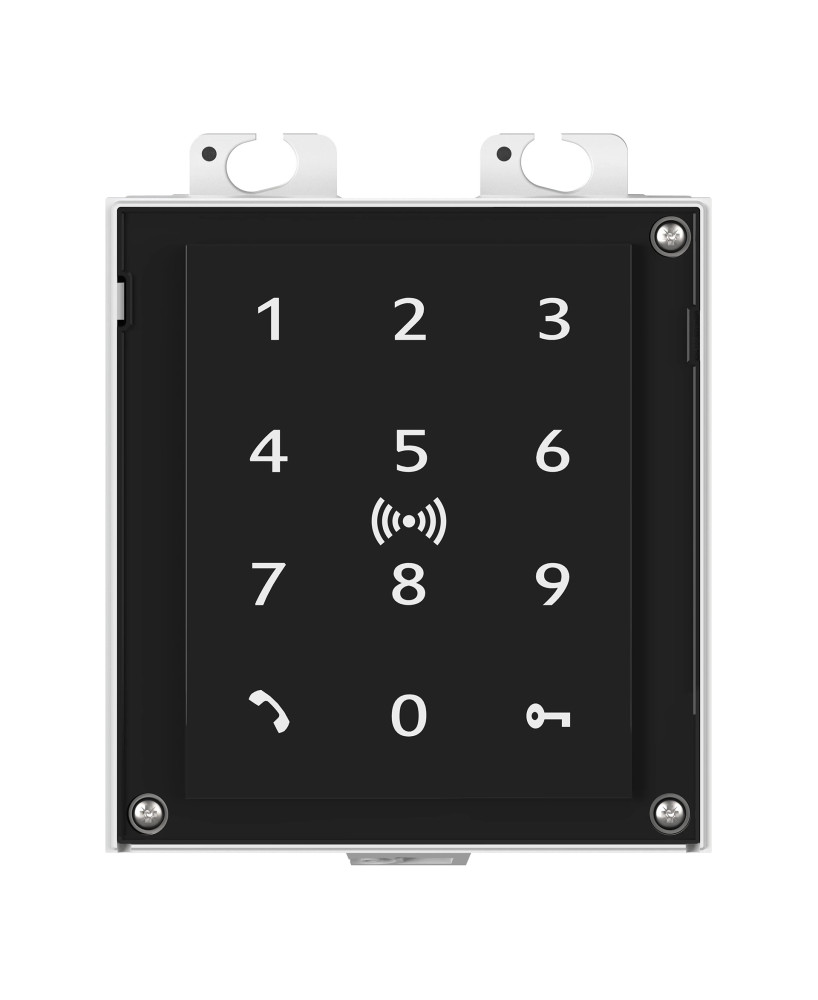

The AXIS 2N IP Verso module 02443-001 combines a capacitive touch keypad with a secure, multi-frequency RFID reader. It supports a wide range of RFID credentials—from basic 125kHz cards to advanced and secured 13.56MHz smart cards. The touch keypad allows for PIN entry, offering an additional layer of security through two-factor authentication.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with a 60-month manufacturer's warranty.

FEATURES

• For IP/LTE Verso & Access Unit Devices
• Touch Keypad with Secured RFID Reader
• Supports 125 kHz & 13.56 MHz Cards

QUICK SPECIFICATIONS

Technology: capacitive touch technology, high touch layer sensitivity (0.1pF)
Reliability: regular automatic calibration (SmartSence Auto-tunning), does not detect false touches on wet surface, resistant to weather conditions
Signalling: configurable backlighting intensity, indication using multicoloured LEDs, acoustic response for every keypad touch
Supported frequencies: 125 kHz variant, 13.56 MHz variant, 125kHz and 13.56MHz variant
Supported card types: Card type compatibility depends on Order No.
125kHz: EM4xxx, HID Prox – versions with 125 kHz support and S in Order No. Only
13.56 MHz: ISO14443A, PicoPass (HID iClass), FeliCa, ST, SR(IX), NFC (2N® Mobile Key), reads UID (CSN) and secured MIFARE®,DESFire® EV2/EV3 cards using 2N® PICard Technology
Secured 13.56 MHz: ISO14443A (MIFARE® DESFire®), PicoPass, (HID iClass), FeliCa, ST SR(IX), NFC (2N® Mobile Key), HID SE (Seos, iClass, MIFARE SE), reads secured MIFARE® DESFire® EV2/EV3, cards using 2N® PICard technology, reads PACs ID (HID iClass cards with SIO
Technology: Capacitive touch layer (sensitivity 0,1 pF)
Reliability: Regular automatic calibration, (SmartSence Auto-tunning), does not detect false touches on wet surface
Signalling: Configurable backlight intensity, indication using multicoloured LEDs, acoustic response for every keypad touch

WHAT'S INCLUDED

• AXIS 2N IP Verso Touch Keypad & RFID Reader Module, 125KHz, Secured 13.56MHz, NFC 02443-001
• User guide
