Bundle APC Smart-UPS 500VA UPS SCL500RMI1UNC + APC Netshelter WX 6U Enclosure + APC Horizontal Cable Management + APC Netbotz Camerapod NET6U-L500-N

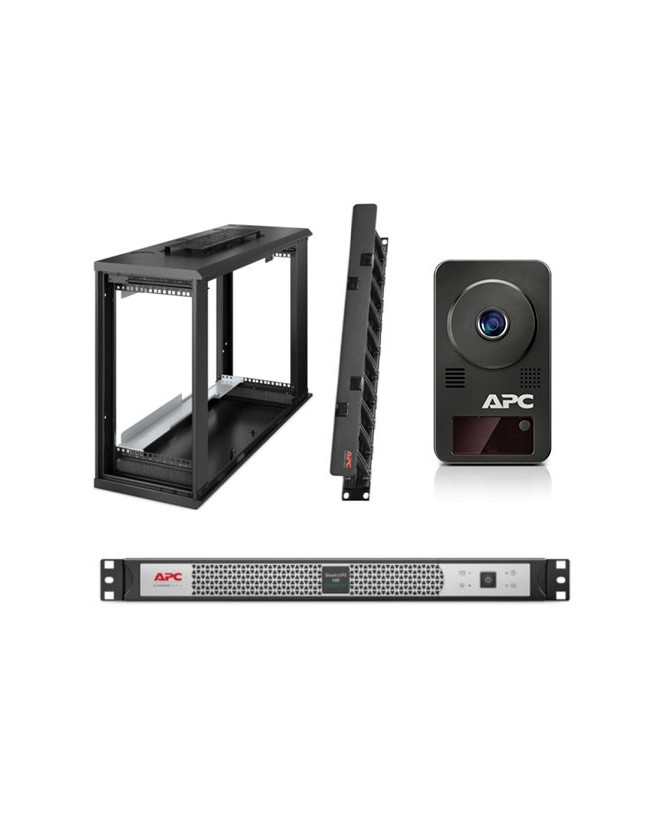

The APC NET6U-L500-N is a bundle that consist of APC NetShelter WX 6U Low-Profile WallMount Enclosure 230V Fans AR106VI, APC Cable Manager AR8602A, APC Smart-UPS SCL500RMI1UNC, and APC NetBotz Camera Pod 165 NBPD0165.

The APC NetShelter WX 6U Low-Profile WallMount Enclosure 230V Fans AR106VI is an innovative new way to deploy server and networking equipment at the Edge. The unique low-profile design enables large depth devices to be wall mounted in a compact and less intrusive form factor than traditional wall mount cabinets.

The APC Cable Manager AR8602A is a Single-Sided Horizontal Cable Manager with Cover that features high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.

The APC Smart-UPS SCL500RMI1UNC provides temporary battery power when the utility power is out. It also provides for remote management and control of the UPS over a network out of the box. The APC SCL500RMI1UNC features LED status indicators which quickly understand the unit and power status with visual indicators.

The APC NetBotz Camera Pod 165 NBPD0165 is a Camera pods that integrate with specific NetBotz appliances to aid intrusion detection and help maintain compliance.

You may also check all the UPS models in various brands we have at The Telecomshop.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with 60 month manufacturer's warranty.

APC NetShelter WX 6U Low-Profile WallMount Enclosure 230V Fans AR106VI
• Air filtration and ventilation: Replaceable MERV 5/G3 dust filter and integrated fans allow equipment to be placed in dusty and light industrial environments
• Enhanced physical security: Protect against physical and environmental threats with camera monitoring, keylock doors, intrusion detection, temperature/humidity monitoring, leak detection, and more
• High weight load capacity: Supports equipment up to 250lbs (113kg) of total load
• Integrator Ready: Shock Packaging allows all equipment to be pre-integrated into the enclosure before it arrives on-site, speeding up and standardizing deployments
• Low-Profile Design: Extends less than 13” (330mm) off of the wall while supporting equipment up to 30” (762mm) deep, including 1 and 2U hyper-converged servers, UPS, and network switches
• Wall mount or floor standing: The detachable wall bracket and optional casters allow the enclosure to be mounted on the wall or floor, depending on the site requirements
• Reversible Door: Wallbox door can be reversed to suit the space its installed.
• Wallbox cable and accessory integration: The bottom and roof of the Wallbox has easy to remove knockouts. This knocks can be used for cable exits or to install a 1U accessory such as a fan or patch panel.

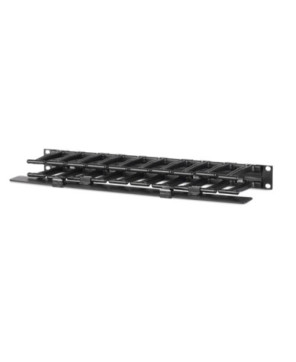

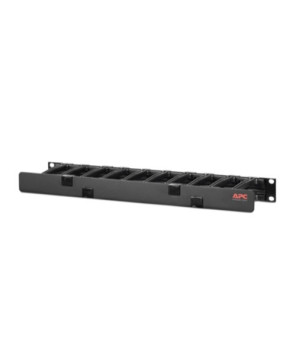

APC Cable Manager AR8602A
• Cable protection: Smooth plastic fingers provide a proper bend radius.
• Double-sided capable: Horizontal cable managers include double-sided configuration hardware to install (2) alike horizontal cable managers back-to-back for double-sided applications.
• Trouble-free access: Covers with snap hinges provide trouble-free access to cables.

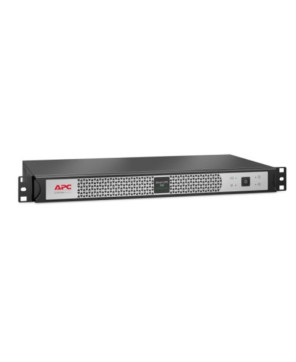

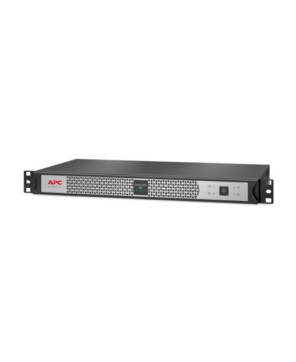

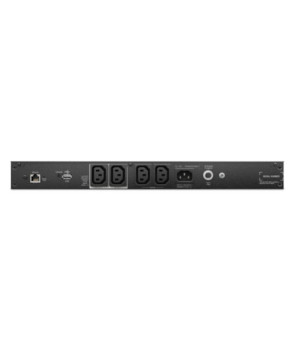

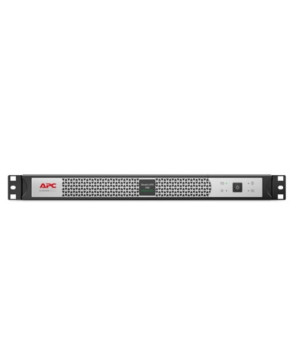

APC Smart-UPS SCL500RMI1UNC
• USB connectivity: Provides management of the UPS via a USB port (not available on all models).
• Serial connectivity: Provides management of the UPS via a serial port.
• Network manageable: Most models provide remote power management options of the UPS over the network.
• Audible alarms: Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
• Disconnected battery notification: Warns when a battery is not available to provide backup power.
• Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
• Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
• User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

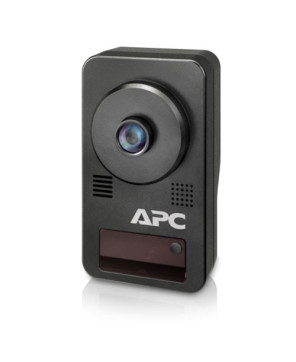

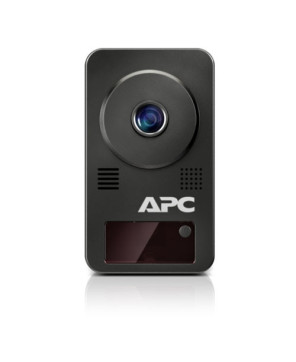

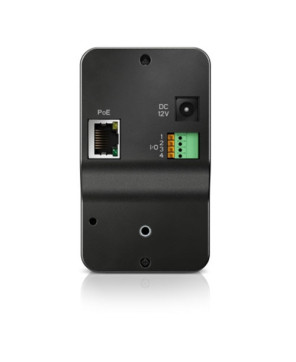

APC NetBotz Camera Pod 165 NBPD0165
• Full-motion video camera
• Handheld device support
• Intelligent appliance
• Network equipment monitoring
• Scalability
• 3rd party sensor support
• Event-driven video storage
• Fault notification
• Customized escalation policies
• Environmental monitoring

APC NetShelter WX 6U Low-Profile WallMount Enclosure 230V Fans AR106VI
• Product Type : WAllmounted Enclosure
• Form Factor : 6U Low-Profile
• Input frequency: 50 Hz
• Features: Replaceable dust filter, 4-Post design for sharable rack U space
• Security: Standard – Keylock doors/panels, Optional – Door Contacts, Camera Monitoring
• Remote Monitoring: EcoStruxure IT Expert / Asset Advisor (mobile, tablet, web
• Weight: 113kg
• Dimensions: 650mm x 969mm x 331mm
• Colour: Black

APC Cable Manager AR8602A
• Colour: Black
• Rack Size: 19"
• Height (Rack Units): 1U
• Dimensions (WxDxH): 4.4 cm x 46.5 cm x 10.9 cm
• Weight: 890 g
• Features: Horizontal orientation
• Designed For: P/N: AR106SH4, AR106SH6, AR106V, AR106VI, AR109SH4, AR109SH6, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RMI2UC, SRT1000RMXLI-NC, SRT5KRMXLW-TW

APC Smart-UPS SCL500RMI1UNC
• Max Configurable Power (Watts): 400Watts / 500VA
• Output Voltage Distortion: Less than 5%
• Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
• Waveform type: Sine wave
• Transfer Time: 6ms typical : 10ms maximum
• Input frequency: 47 - 63 Hz
• Battery type: Lithium Ion
• Expected Battery Life (years): 8 - 10
• Typical recharge time: 3hour(s)
• Battery Charge Power (Watts): 10Watts
• Battery Volt-Amp-Hour Capacity: 30
• Maximum Height: 44MM, 4.4CM
• Maximum Width: 432MM, 43.2CM

APC NetBotz Camera Pod 165 NBPD0165
• Input Power: 4 Watts
• Maximum Height: 97MM, 9.65CM
• Maximum Width: 56MM, 5.6CM
• Maximum Depth : 38MM, 3.8CM
• Color: Black

• 1 x APC NetShelter WX 6U Low-Profile WallMount Enclosure AR106VI
• 1 x APC AR8602A Single Sided Horizontal Cable Manager with Cover
• 1 x APC Smart-UPS C Lithium Ion Short Depth 500VA, 230V with Network Card SCL500RMI1UNC
• Rack Mounting support rails
• USB cable
• Installation Guide
• 1 x APC NetBotz Camera Pod 165 NBPD0165
