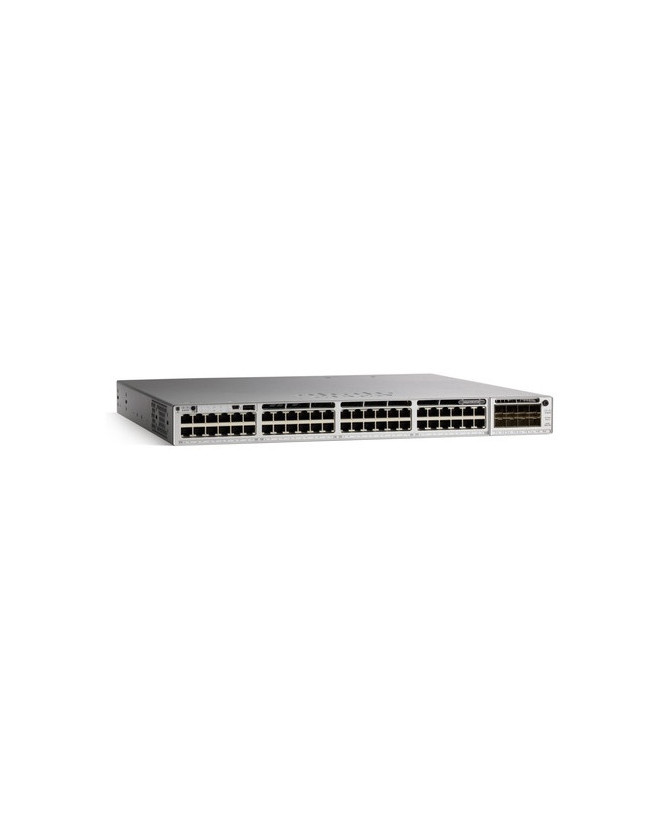

Cisco Catalyst 9300 48-port of 5Gbps Network Advantage Switch C9300-48UN-A-RF

The Cisco Catalyst 9300 48-port of 5Gbps Network Advantage Switch C9300-48UN-A-RF is a Cisco Switch - 48 ports - L3 - managed - stackable with Gigabit Ethernet supported, 640 Gbps of switching capacity, 480 Gbps of Stacking bandwidth, 190.48 Mpps of Forwarding rate, 8 GB of RAM, 16 GB Flash Memory, and also built in Intelligent Power Management with Cisco StackPower technology and providing power stacking among members for power redundancy.

In addition, it provides 48 x 1/2.5/5GBase-T RJ-45 UPOE network interface port, 1100W AC internal power supply, and features DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, and third-party IP Address Management (IPAM) integration.

Note: 3-4 weeks ETA

Manufacturer Refurbished - Cisco Refresh products have been remanufactured, have had critical engineering change orders made, and have been thoroughly tested and retested to meet stringent Cisco specifications. Cisco's rigorous and proprietary process ensures that our customers get genuine Cisco products, certified by Cisco.

If you want to know more about Cisco Refresh products, please download/click this FAQ.

This item is a remanufactured and supported by Cisco with a Enhanced Limited Lifetime Hardware Warranty.

• Switch - 48 ports - L3 - managed - stackable
• Rack-mountable 1U Enclosure Type
• Gigabit Ethernet
• Switching capacity: 640 Gbps
• Stacking bandwidth: 480 Gbps
• Forwarding rate: 190.48 Mpps
• IPv4 routing table entries: 32000
• IPv6 routing table entries: 16000
• Flexible NetFlow entries: 64000
• VLAN IDs: 4000
• Switched virtual interfaces (SVIs): 2000
• 8 GB RAM
• 16 GB Flash Memory
• 48 x 1/2.5/5GBase-T RJ-45 UPOE network interface
• Routing Protocol: OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
• Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
• features DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration
• 1100 Watt Internal power supply - hot-plug AC 120/230 V (50 - 60 Hz)

• 1 x Cisco Catalyst 9300 48-port of 5Gbps Network Advantage Switch C9300-48UN-A-RF
• User Guide

Do you have a question about this product? Please call 1800 90 90 99.
