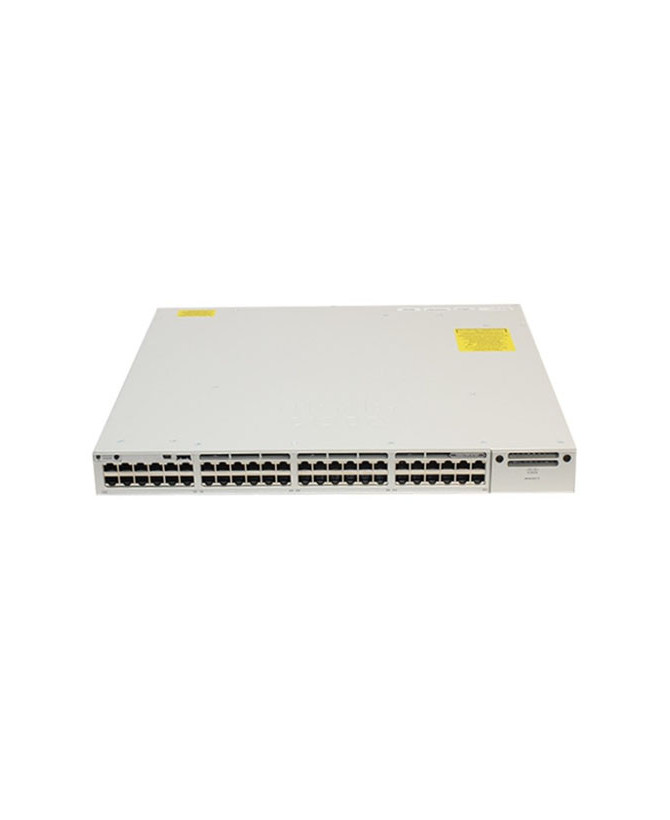

Cisco Catalyst 9300 L3 48 Port PoE+ Stackable Managed Switch C9300-48P-E
The Cisco Catalyst 9300 Network Essentials C9300-48P-E is an L3 Stackable/Rack-mountable 1U Managed Switch with 48 x 10/100/1000 (PoE+) Ports which considered to be the Cisco’s lead enterprise switching platform built for security, IoT, mobility, and cloud.
The Cisco Catalyst 9300 Network Essentials C9300-48P-E is an L3 Stackable/Rack-mountable 1U Managed Switch with 48 x 10/100/1000 (PoE+) Ports which considered to be the Cisco’s lead enterprise switching platform built for security, IoT, mobility, and cloud. The C9300-48P-E is the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, it is the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The C9300-48P-E is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. This switch is also ready for the future, with an x86 CPU architecture and more memory, enabling it to host containers and run third-party applications and scripts natively within the switch. The Cisco Catalyst 9300 L3 48 Port PoE+ Stackable Managed Switch requires Cisco license.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a Cisco Enhanced Limited Lifetime Hardware Warranty
QUICK SPECIFICATIONS
• Product Description: Cisco Catalyst 9300 - Network Essentials - switch - 48 ports - Managed - rack-mountable
• Device Type: Switch - 48 ports - L3 - Managed - stackable
• Enclosure Type: Rack-mountable 1U
• Subtype: Gigabit Ethernet
• Ports: 48 x 10/100/1000 (PoE+)
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 437 W
• Switching capacity: 128 Gbps
• Stacking bandwidth: 480 Gbps
• Forwarding rate: 190.48 Mpps
• IPv4 routing table entries: 32000
• IPv6 routing table entries: 16000
• Flexible NetFlow entries: 64000
• VLAN IDs: 4000
• Switched virtual interfaces (SVIs): 2000
• MAC Address Table Size 32000: entries
• Jumbo Frame Support: 9198 bytes
• Routing Protocol: OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
• Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
• Features: Trunking, full-duplex mode, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, FTP client, 3 fans, Control plane protection (CoPP), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
• Power Redundancy: Optional
• Dimensions (WxDxH): 44.5 cm x 44.5 cm x 4.4 cm
• Weight: 7.59 kg
WHAT'S INCLUDED
• Cisco Catalyst 9300 C9300-48P-E
• User Guide
