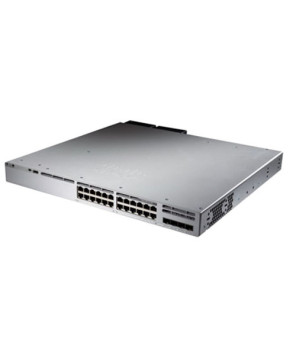

Cisco Catalyst 9300L 24-port Network Essential 4x10G Switch C9300L-24T-4X-E

The Cisco C9300L-24T-4X-E Catalyst 9300L 24-port Data Network Essential 4x10G Uplink is built for security, IoT, and the cloud, these network switches form the foundation for Cisco’s Software-Defined Access, our leading enterprise architecture. Cisco Catalyst 9300L switches are the Catalyst 9300 switches with fixed modules. The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence. It will surely meet your business networking demand.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with Limited-Lifetime manufacturer's warranty.

• Quality of Service (QoS)
• Cisco StackWise Technology
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• Shaped Round Robin (SRR)
• PXE support
• Remote Switch Port Analyzer (RSPAN)
• NetFlow
• Energy Efficient Ethernet
• Management Information Base (MIB)
• Class of Service (CoS)
• Flexible NetFlow (FNF)
• 802.1x authentication
• 16MB packet buffer
• DiffServ Code Point (DSCP) support
• MACsec support
• Control plane protection (CoPP)
• Switched Port Analyzer (SPAN)
• Embedded Event Manager (EEM)
• Protocol Independent Multicast (PIM)
• First Hop Security (FHS)
• PVLAN support
• Committed Information Rate (CIR)

• Enclosure Type: Rack-mountable
• Subtype: Gigabit Ethernet
• Ports: 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
• Performance: Switching capacity with stacking: 448 Gbps ¦ Switching capacity: 128 Gbps ¦ Forwarding rate: 95.23 Mpps ¦ Forwarding rate with stacking: 333.33 Mpps
• Capacity: IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Multicast scale: 8000 ¦ QoS scale entries: 5120 ¦ ACL scale entries: 5120 ¦ Routed ports: 416 ¦ VLANs supported: 4094 ¦ Switched virtual interfaces (SVIs): 1000
• MAC Address Table Size: 32000 entries
• Jumbo Frame Support: 9198 bytes
• Routing Protocol: OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
• Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz
• RAM: 8 GB
• Flash Memory: 16 GB
• MTBF: 387,700 hours
• Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35

• Cisco Catalyst 9300L 24-port Data Network Essential 4x10G Uplink
• User Guide

Do you have a question about this product? Please call 1800 90 90 99.
