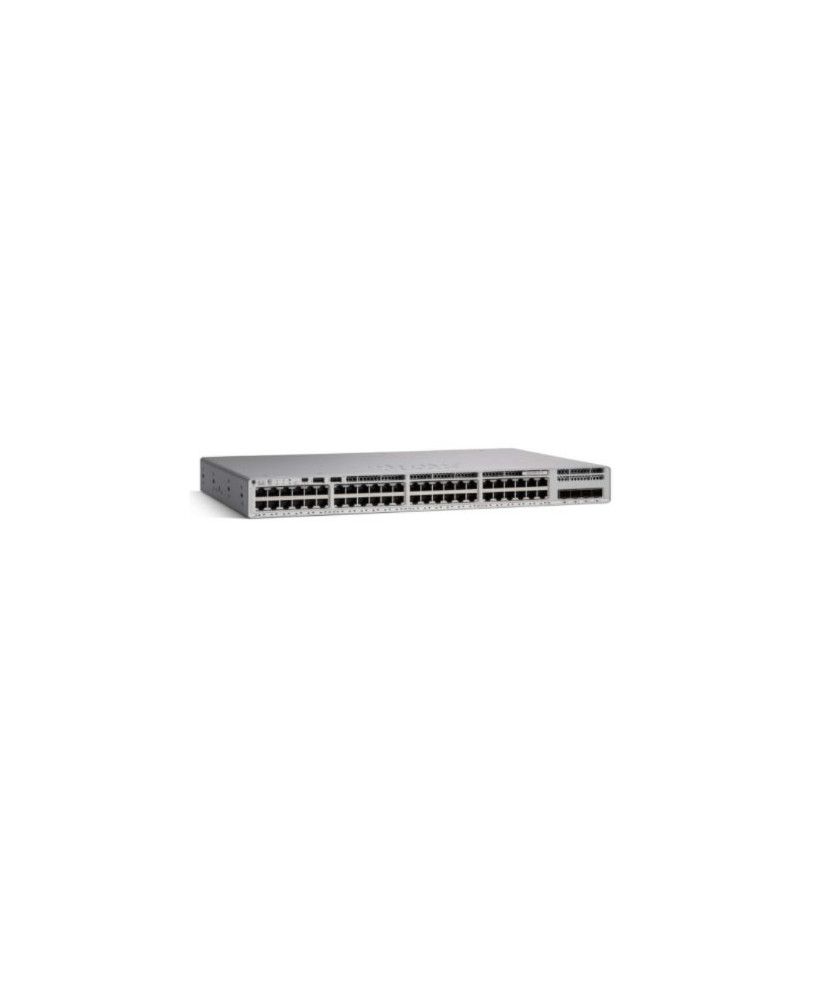

Cisco Catalyst 9300L PoE 48 Port Switch C9300L-48P-4X-E
The Cisco Catalyst 9300L PoE 48 Port Switch C9300L-48P-4X-E is one of the Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution.
Overseas orders are NOT AVAILABLE.
The Cisco Catalyst 9300L PoE 48 Port Switch C9300L-48P-4X-E is one of the Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with limited lifetime manufacturer's warranty.
FEATURES
• Quality of Service (QoS)
• Cisco StackWise Technology
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• Shaped Round Robin (SRR)
• PXE support
• Remote Switch Port Analyzer (RSPAN)
• NetFlow, Energy Efficient Ethernet
• Management Information Base (MIB)
• Class of Service (CoS)
• Flexible NetFlow (FNF)
• 802.1x authentication
• 16MB packet buffer
• DiffServ Code Point (DSCP) support
• MACsec support
• Control plane protection (CoPP)
• Switched Port Analyzer (SPAN)
• Embedded Event Manager (EEM)
• protocol Independent Multicast (PIM)
• First Hop Security (FHS)
• PVLAN support
• Committed Information Rate (CIR)
SPECIFICATIONS
• Device Type: Switch - 48 ports - L3 - stackable
• Enclosure Type: Rack-mountable
• Subtype: Gigabit Ethernet
• Ports: 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 505 W
• Performance: Switching capacity with stacking: 496 Gbps ¦ Switching capacity: 176 Gbps ¦ Forwarding rate: 130.95 Mpps ¦ Forwarding rate with stacking: 369.05 Mpps
• Capacity: IPv4 routes: 32000 ¦ IPv6 routes: 16000 ¦ Multicast scale: 8000 ¦ QoS scale entries: 5120 ¦ ACL scale entries: 5120 ¦ Routed ports: 416 ¦ VLANs supported: 4094 ¦ Switched virtual interfaces (SVIs): 1000
• MAC Address Table Size: 32000 entries
• Jumbo Frame Support: 9198 bytes
• Routing Protocol: OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
• Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz
• RAM: 8 GB
• Flash Memory: 16 GB
WHAT'S INCLUDED
• Cisco Catalyst 9300L PoE 48 Port Switch C9300L-48P-4X-E
• 1 x Power Supply
• 3 x Field-replaceable Fans
Do you have a question about this product? Please call 1800 90 90 99.
The Cisco Catalyst 9300L PoE 48 Port Switch C9300L-48P-4X-E is one of the Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution.
Overseas orders are NOT AVAILABLE.
