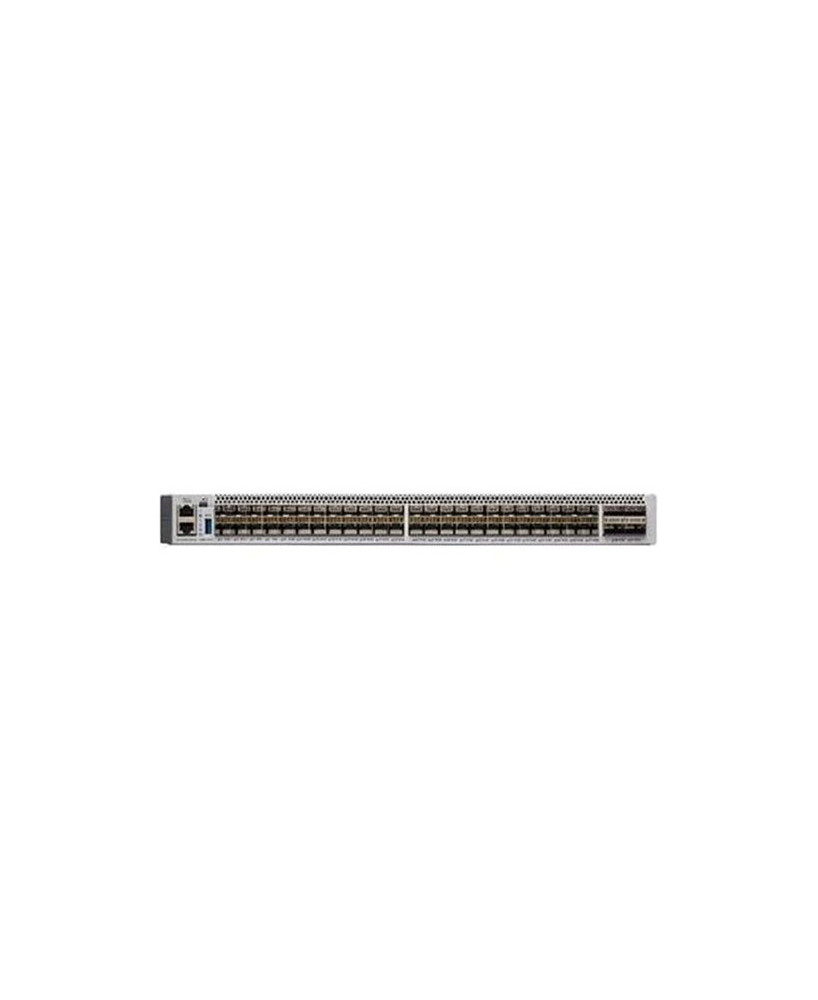

Cisco Catalyst 9500 Network Advantage Switch 48 Ports Managed Rack-Mountable with 8 x Cisco QSFP-40G-SR-BD modules C9500-48Y4C-A-BUN
The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability.
Overseas orders are NOT AVAILABLE.
The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a Limited lifetime manufacturer's warranty.
FEATURES
• Up to 960-Gbps switching capacity (IPv4) with up to 1440 Mpps of throughput
• Up to 24 nonblocking 40 Gigabit Ethernet QSFP ports
• Platinum-rated AC power supplies
• Up to 512,000 Flexible NetFlow (FNF) entries in hardware
• Up to 32 MB of shared buffer per ASIC
• Up to 64,000 routing entries for high-end campus access and aggregation deployments
• IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
• Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
• Support for both static and dynamic NAT and Port Address Translation (PAT)
• Scalable routing (IPv4, IPv6, and multicast) tables and Layer 2 tables
QUICK SPECIFICATIONS
• Product Description: Cisco Catalyst 9500 - Network Advantage - switch - 48 ports - Managed - rack-mountable - with 8 x Cisco QSFP-40G-SR-BD modules
• Device Type: Switch - 48 ports - L3 - Managed - with 8 x Cisco QSFP-40G-SR-BD modules
• Packaged Quantity: 2 (specifications are for single item)
• Enclosure Type: Rack-mountable 1U
• Subtype: 25 Gigabit Ethernet
• Ports: 48 x 25 Gigabit SFP28
• Performance: Switching capacity (full duplex): 3.2 Tbps ? Forwarding rate: 1 Bpps
• Capacity: Routing table entries: 80000 ? Indirect IPv4 routes: 212000 ? Host IPv4 routes: 90000 ? Indirect IPv6 routes: 212000 ? Host IPv6 routes: 90000 ? Multicast scale: 32000 ? QoS ACL scale: 16000 ? Security ACL scale: 270000 ? FNF entries: 96000 ? VLAN IDs: 4000 ? Switched virtual interfaces (SVIs): 4000
• MAC Address Table Size: 64K entries
• Jumbo Frame Support: 9198 bytes
• Routing Protocol: OSPF, IS-IS, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS
• Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
• Power: AC 120/230 V (50 - 60 Hz)
• Power Redundancy: Optional
• Dimensions (WxDxH): 44.5 cm x 45.7 cm x 4.39 cm
• Weight: 9.96 kg
WHAT'S INCLUDED
• Cisco Catalyst 9500 Network Advantage Switch 48 Ports Managed Rack-Mountable with 8 x Cisco QSFP-40G-SR-BD modules C9500-48Y4C-A-BUN
• User Guide
