Crestron Flex Tabletop Small Room Video Conference System UC-MM30-Z-I for Zoom Rooms Systems

The Crestron UC-MM30-Z-I Flex Tabletop Small Room Video Conference System provides a video conference room solution for use with Zoom Rooms software. It supports a single video display and features a Crestron Flex tabletop conference device (UC-2-Z-I), UC Bracket Assembly (UC-BRKT-200-S-Z-ASSY), and a collaboration camera (CCS‑CAM‑USB‑F‑400). The UC-MM30-Z-I system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing. With a large 7 in. HD colour touch screen and an integrated AEC-enabled USB speakerphone that affords full-duplex wideband audio performance, the Crestron Flex Tabletop Conference device (UC-2-Z-I) provides a superior conferencing and collaboration experience for meeting rooms, huddle spaces, and executive offices. The UC Bracket Assembly (UC‑BRKT‑200‑S‑Z‑ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The included collaboration camera (CCS‑CAM‑USB‑F‑400) features an ultra-wide-angle 150° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 12 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with 36-month manufacturer's warranty.

• Tabletop video conferencing solution for Zoom Rooms™ software
• Native Zoom Rooms touch screen UI provides a consistent user experience with simple operation and one-touch meeting joins
• Complete kit contains the Crestron tabletop conference device, a collaboration camera, UC bracket assembly, and PoE injector— just add a display and mount
• Easy to specify and install — no custom design, programming, or software installation required
• Network management and provisioning and system alerts through the XiO Cloud® service
• Premium-level support with Crestron Flex Care (optional)
• Enterprise-grade security - connects and communicates securely over any enterprise or SMB network
• Supports a single video display

Crestron Flex Tabletop Conferencing System
• Touch Screen: 7 in. (178 mm) diagonal capacitive multi‑touch TFT active matrix colour LCD, 1280 x 800 pixels
• UI: Zoom Rooms UI
• Mic: Mute Symbol and Light Bar (4) Capacitive buttons with bi‑colour LEDs, toggles between mute and unmute
• AEC: Automatic gain control, dynamic noise reduction, acoustic echo cancellation, full‑duplex IEEE 1329 Type 1 compliant
• Speaker: Full range speaker; Amplifier Power: 7 W (rated power); Output Volume: 83 ±3 dBA @1m 1 kHz; Frequency Response: 100 Hz - 20 kHz
• Microphones: 4x Built-in omnidirectional, digital MEMS microphones with 360° audio pickup; Maximum pickup range: 10 ft (3 m) typical
• Wi-Fi®2: Dual-band 802.11a/b/g/n/ac (2.4 GHz & 5 GHz)
• USB: USB 2.0 micro Type B device port, supports UAC for audio interface to UC Engine (cable included)
• Power: IEEE 802.3af Class 3 and 802.3at Class 4 PoE+ powered device; PoE+ injector included
• Height: 77 mm
• Width: 182 mm
• Depth: 244 mm
• Weight: 0.96 kg

Camera
• Image Sensor: 12 Megapixel 1/2.3 CMOS sensor
• Lens: High precision, ultra wide angle, six element aspherical glass lens
• Field of View: 150° diagonal, 120° horizontal, 90° vertical
• Aperture: f/2.8
• Autozoom: Genius Framing automatic lossless digital zoom intelligently frames around people in the room
• Connectivity: Plug‑and‑play USB 3.1
• Resolution/FPS: HD 1080p @ 30 fps
• Height: 36 mm
• Width: 41 mm
• Depth: 72 mm
• Weight: 120 g

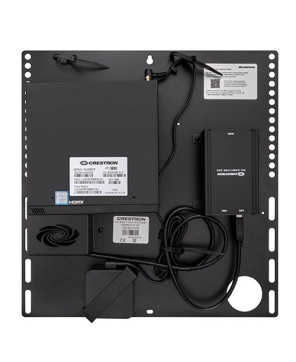

UC Bracket Assembly
• Mini PC: Intel Core® processor with Windows® 10 IOT Edition OS
• UC Client: Zoom Rooms software
• Management Client: XiO Cloud Service
• Content Ingest: HDMI input via HDMI to USB 3.0 converter (model HD‑CONV‑USB‑200)
• Display Output: Single display support
• Display Output Resolution: 1080p
• Power: 65 W via external 100‑240 VAC, 50/60 Hz adapter (included)
• Height: 381 mm
• Width: 368 mm
• Depth: 44 mm
• Weight: 3 kg

• Crestron Flex Tabletop Audio Conference System includes UC-2-Z-I:
- PoE+ Injector, Input: 100~240 VAC, Output: 48 VDC, 0.5 A
- Cable, CAT5e, RJ45-to-RJ45, 12 ft (3.7 m) (x2)
- Cable, USB 2.0, A - Micro B, 5.8 ft (1.8 m)
• UC Bracket Assembly for Zoom Rooms systems UC‑BRKT‑200‑S‑Z‑ASSY:
- UC-ENGINE-S-Z: UC Engine for Zoom Rooms video
- HD-CONV-USB-200: HDMI® to USB 3.0 converter for content ingest
- Mounting hardware
• Crestron UC-2-Z-I Flex Tabletop Audio Conference System includes:
- PoE+ Injector, Input: 100~240 VAC, Output: 48 VDC, 0.5 A
- Cable, CAT5e, RJ45-to-RJ45, 12 ft (3.7 m) (x2)
- Cable, USB 2.0, A - Micro B, 5.8 ft (1.8 m)
• Collaboration Camera CCS‑CAM‑USB‑F‑400
• Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m) CBL-CAT5E-7
• HDMI Interface Cable, 6 ft (1.8 m) CBL‑HD‑6
• HDMI Interface Cable, 20 ft (6.1 m) CBL‑HD‑20 • USB Extension Cable, USB Type A Male-to-Female, 15 ft (4.6 m) CBL-USB-A-EXT-15
• USB 3.0 Cable, Right angle USB‑C® to A, 6 ft (1.8 m) CBL-USBC-USBA-6
• Wall Mount Kit for Crestron® Cameras UC-CAM-WMK
• HDMI Female‑to‑Male EDID Passthrough

Do you have a question about this product? Please call 1800 90 90 99.
