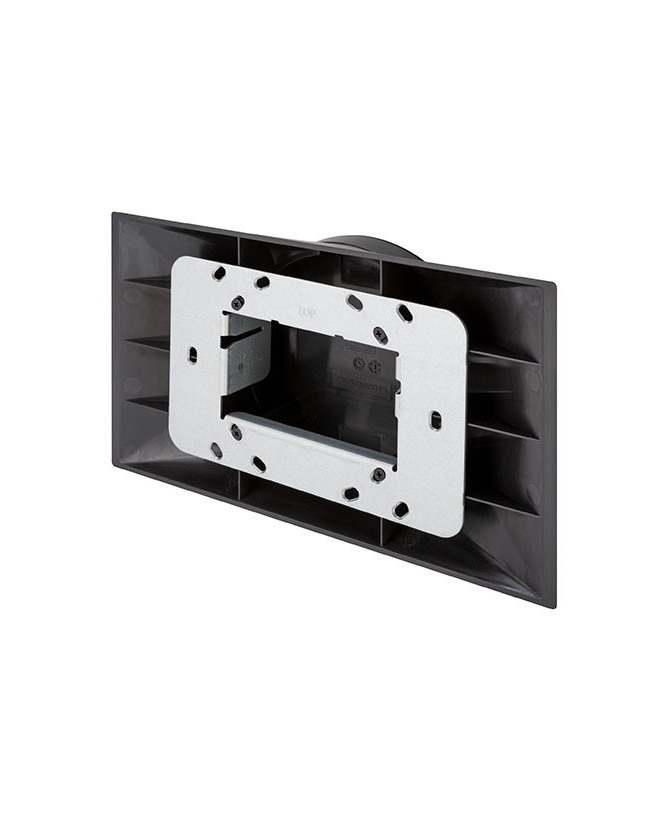

Crestron Multisurface Mount Kit in Black Smooth Color TSW-1070-MSMK-B-S for TSW-1070 Series

The Crestron TSW-1070-MSMK-B-S provides a versatile surface mounting solution for a TSW‑1070 or TSS‑1070 series touch screen. Using the multisurface mount kit, the touch screen can be mounted directly to glass, granite, marble, wood paneling, plaster, smooth masonry, or virtually any other flat surface. TSW-1070-MSMK is ideal for mounting at the entrance to a meeting space for room scheduling applications, and it is compatible with the TSW‑1070‑LB light bar to provide a clear indication of the room availability status.

The TSW-1070-MSMK attaches securely to a flat, smooth surface without screws using the included peel‑and‑stick adhesive rear housing. For a finished appearance when mounted to a transparent glass wall, an adhesive molded plastic cap is provided, which simply affixes to the opposite side of the glass behind the unit. Templates are provided for the MSMK and the plastic cap to help ensure that both are level and properly aligned with the surface.

The TSW-1070-MSMK comes complete with a self‑adhering plastic raceway for use on smooth surfaces, which conceals cables running to the touch screen from the floor, ceiling, or an adjacent wall, pillar, or mullion. The raceway is paintable and is composed of three 3 ft (0.91 m) sections, as well as an assortment of elbows and couplings.

The TSW-1070-MSMK rear housing provides four cutout holes (on the top, bottom, and sides of the housing) for running concealed cables to the touch screen using the included adhesive‑backed raceway. A plastic cover with an opening for the raceway is attached to the rear housing to conceal any unused cutouts.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 12-month manufacturer's warranty.

• Permits flush mounting a TSW‑1070 or TSS‑1070 series touch screen to virtually any flat, smooth surface
• Ideal for mounting at the entrance to a meeting space for room scheduling applications
• Supports glass surface and partition mounting
• Compatible with the TSW‑1070‑LB light bar for a clear indication of the room availability status
• Secure, screwless installation using the peel‑and‑stick adhesive rear housing
• Provides an assortment of raceway to conceal wiring
• Includes a rotatable plastic cover to conceal unused cutouts

CONSTRUCTION
• Housing: Plastic, black or white finish
• Surface Mounting: Peel-and-stick adhesive mounting to glass or other flat, smooth surface
• Raceway: Peel-and-stick adhesive mount plastic raceway, white (paintable), 0.77 in. W x 0.46 in. D (19.6 mm W x 11.7 mm D) profile; includes (3) 3 ft (0.91 m) straight sections, (2) straight couplers, (2) 90° flat elbows, (1) inside elbow, and (1) outside elbow
DIMENSIONS
Without touch screen:
• Height: 5.04 in. (128 mm)
• Width: 8.63 in. (219 mm)
• Depth: 1.69 in. (43 mm)
With touch screen installed:
• Height: 5.87 in. (149 mm)
• Width: 9.46 in. (240 mm)
• Depth: 2.28 in. (58 mm)

• 1 x TSW-1070-MSMK,Multisurface Mount Kit
• 2 x Coupler
• 1 x Fitting, Inside Corner
• 1 x Fitting, Outside Corner
• 2 x Fitting, Right Angle
• 3 x Raceway, 3 ft
• 4 x Screw, 4-40 x 5/8 in., Phillips
• 1 x Template, Mounting Housing
• 1 x Template, Mounting Cap
• 1 x Bracket, Black
• 1 x Cover, Black
• 1 x Cap, Black
• Quick Start Guide
