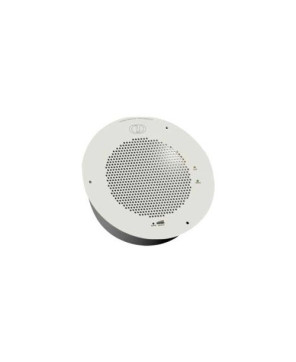

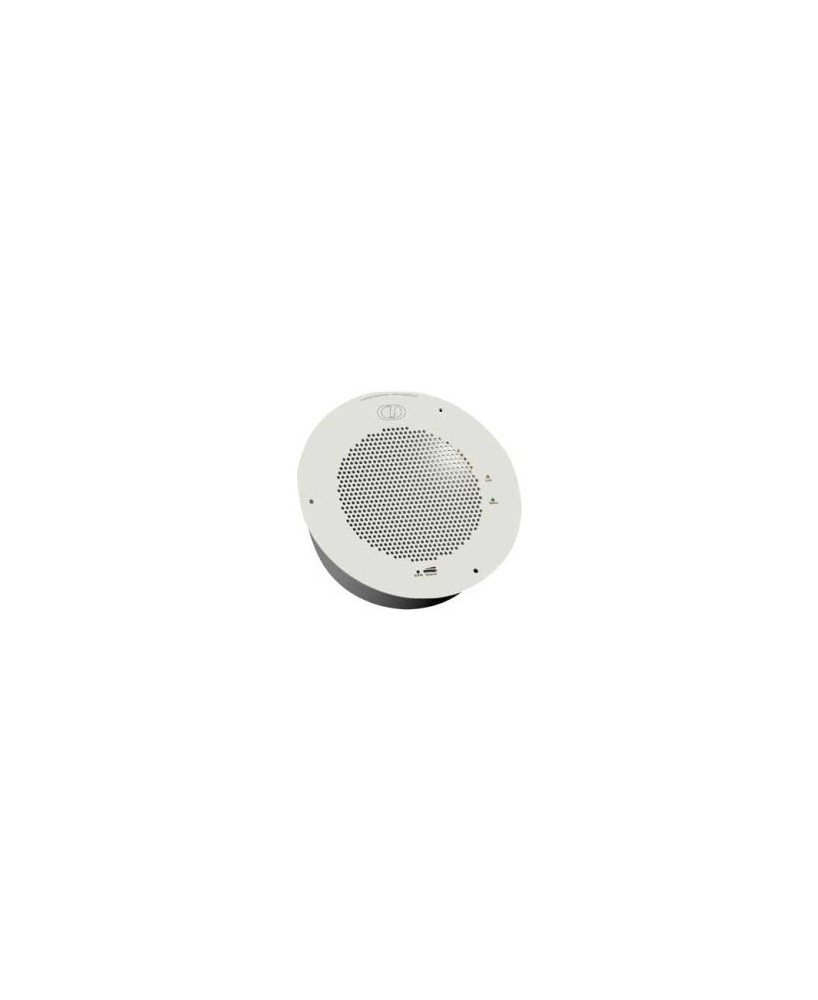

CyberData 011396 Singlewire InformaCast Speaker in Signal White


Regular Price $1,467.94 Special Price $1,213.25 $1,334.58
MPN :  011396
In stock

Manufacturer :CyberData

Warranty :24 Months

new
The CyberData 011396 is a paging or public address singlewire speaker that is used as a paging and emergency notification for software InformaCast or InformaCast CK. It supports Power over Ethernet (PoE 802.3af/802.3at) standard and gives you the option of dual registration for the same speaker for Singlewire and SIP. It provides an efficient narrowband G.711 and wideband G.722 audio codecs that gives you freedom in terms of data usage and audio quality. It is also offers advanced network-enabled controls that includes secure HTTPS auto-provisioning, 802.11q VLAN tagging, and more. You can also manage the speaker simply from a connected workstation, adjusting volume, setting page groups, playing music through network control.
Fast delivery
Australia wide service
Australian owned
100% Australian
Save money save the environment

Special Offers

Rating:
100%
Regular Price $121.92 Special Price $100.80 $110.88
Rating:
100%
Regular Price $521.43 Special Price $412.20 $453.42

The CyberData 011396 is a paging or public address singlewire speaker that is used as a paging and emergency notification for software InformaCast or InformaCast CK. It supports Power over Ethernet (PoE 802.3af/802.3at) standard and gives you the option of dual registration for the same speaker for Singlewire and SIP. It provides an efficient narrowband G.711 and wideband G.722 audio codecs that gives you freedom in terms of data usage and audio quality. It is also offers advanced network-enabled controls that includes secure HTTPS auto-provisioning, 802.11q VLAN tagging, and more. You can also manage the speaker simply from a connected workstation, adjusting volume, setting page groups, playing music through network control.

CONDITION

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

WARRANTY

This item comes with 24 month manufacturer's warranty.

FEATURES

• Capable of receiving SingleWire Informacast, SIP and Multicast messages
• Support for security code to prevent unwanted SIP calls
• Optional red/green/blue/white strobe kit connection available
• Autoprovisioning via HTTP, HTTPS, or TFTP
• HTTPS or HTTP web based configuration. HTTPS is enabled by default.
• 802.11q VLAN tagging
• Configurable sense input for use with fault detection or with optional lighted button kit
• Configurable event generation for device health and status monitoring
• Support for G.722 codecs
• Powered via PoE (802.3AF or 802.3AT) or 24V auxiliary power supply (not included)
• Enhanced interoperability for hosted environments
• SIP (RFC 3261) compatible
• Night Ringer function
• Plays audio from Multicast
• Web-based configuration
• Paging prioritization and background music
• User upgradeable firmware via web interface or autoprovisioning
• External volume control
• Small footprint
• High efficiency speaker driver
• IGMP l SIP endpoint or Multicast group member Network-adjustable speaker volume
• Can drive one external analog speaker for greater coverage (part "011120/011121 sold separately)
• Optional clock kit available (part "011153/011154 sold separately)
• Support for 10 multicast paging groups
• Support for multiple SIP servers for redundancy
• Support for Cisco SRST resiliency
• Relay for activating door locks, external amplifiers, etc.
• Line-level audio output for connecting to an external amplifier
• Singlewire Informacast compatibility available.
• Includes support for Informacast resiliency.
• Supports both SIP and Singlewire InformaCast
• InformaCast compliant
• InformaCast CK compliant

QUICK SPECIFICATIONS

Ethernet I/F 10/100 Mbps
Protocol InformaCast® and/or SIP RFC 3261 Compatible
Power Input PoE 802.3af/802.3at
Audio Output 802.3af- SPL 109.2 dB @ 1 meter
802.3at SPL 111.9 dB @ 1 meter
Operating Range Temperature -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity 5-95%, non-condensing
Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage Altitude Up to 15,000 ft. (4573 m)
Payload Types G.711 a-law, G.711 a-law, G.722 a-law, G.722 a-law
Dimensions 9 in. [228.6 mm] x 2.4 in. [60.96 mm]
Boxed Weight 4.0 lbs. [1.81 kg]
Compliance CE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant

WHAT'S INCLUDED

• 1 x CyberData 011396 Singlewire InformaCast Speaker in Signal White
• User Guide

Do you have a question about this product? Please call 1800 90 90 99.

More Information
Discontinued No
Manufacturer CyberData
MPN 011396
Write Your Own Review
You're reviewing:CyberData 011396 Singlewire InformaCast Speaker in Signal White
Your Rating
Icon Label Description Type Size Download
pdf CyberData 011395 011396 Singlewire InformaCast Speaker Datasheet pdf 407.4 KB Download
pdf CyberData 011395 011396 Singlewire InformaCast Speaker Quick Start Guide pdf 1.2 MB Download
pdf CyberData 011395 011396 Singlewire InformaCast Speaker Quick Reference pdf 2 MB Download
