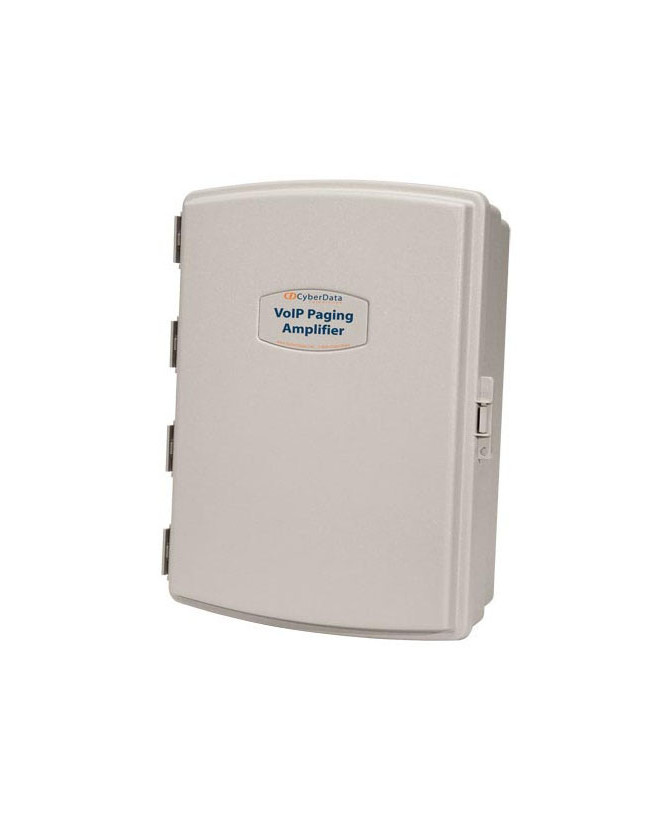

CyberData 011405 SIP Loudspeaker Amplifier-PoE
Manufacturer :CyberData
Warranty :24-months
Special Offers
The CyberData 011405 is a SIP-enabled loudspeaker amplifier that integrates well on your paging system with your VoIP phone system. This POE-powered amplifier powers two 8-ohm loudspeakers that and enhances your public address system by making it directly and simply manageable via a web-based interface. It provides up to nine page messages for automatic broadcasts. It also supports SIP RFC 3261, and can also act as a Multicast group member. In addition, the CyberData 011404 uses the efficient G.711 and G.722 audio codecs to produce clear broadcasts.
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTYThis item comes with 24 month manufacturer's warranty.
FEATURES
• SIP Enhanced interoperability for hosted environments - CyberData has maintained one of the most comprehensive list of IP PBX servers certified to work with CyberData
• Support for security code access for SIP paging
• Autoprovisioning via HTTPS
• HTTPS web based configuration
• Support for G.722 codecs
• 802.11q VLAN tagging
• Configurable sense input for use with fault detection
• Configurable event generation for device health and status monitoring
• Optional direct connect RGB strobe kit connection
• 9 user-uploadable page messages
• Packaged in a NEMA 3R/IP42-rated enclosure SIP and Simultaneous Multicast
• Dual-speed ethernet 10/100 Mbps
• Web-based configuration
• PoE 802.3at and 802.3af-enabled Line-in for background music
• Line-out connector
• DTMF controlled relay
• Direct 8 Ohm speaker drive
• User-uploadable tones and messages
• Digital and manual volume control
• Second SIP endpoint "Night Ringer"
• Autoprovisioning
• Auto-call voice message from input port sense Can support two horns (Mini Horn Loudspeaker must be purchased separately.)
• HTTP Command Interface
• 10 channel prioritized Multicast ports
• Built-in diagnostics
• Delayed page support
• Cisco SRST
| Ethernet I/F | 10/100 Mbps |
| Protocol | SIP RFC 3261 Compatible |
| Power Input | PoE 802.3at or 802.3af |
| Audio Output | 802.3at: 117.9 (+/- 0.2) dBC @1M and 1kHz* (*When used with the optional 011471 horn) 802.3af: 115.1 (+/- 0.2) dBC @1M and 1kHz* (*When used with the optional 011471 horn) |
| 802.3at | SPL 111.9 dB @ 1 meter |
| Operating Temperature | -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) |
| Humidity | 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
| Enclosure | NEMA3/3X (IP55 rated) |
| Input Signal Amplitudes | 2.0 VPP maximum |
| Input Impedance | 10k Ohm |
| Output Signal Amplitudes Output Level Total Harmonic Distortion Output Impedance |
2.0 VPP maximum +2dBm nominal 0.5% maximum 10k ohm |
| Payload Types | G.711 a-law, G.711 a-law, and G.722 |
| Dimensions | 10 in. [254 mm] Length x 4 in. [101.6mm] Width x 14 in. [355.6 mm] Height |
| Boxed Weight | 3.6 lbs. [1.63 kg] |
| Compliance | CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
• 1 x CyberData 011405 SIP Loudspeaker Amplifier-PoE
• User Guide
