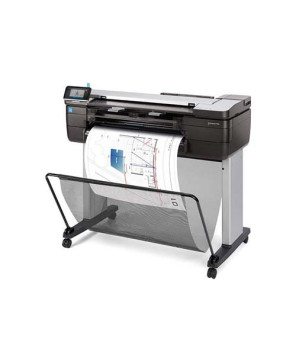

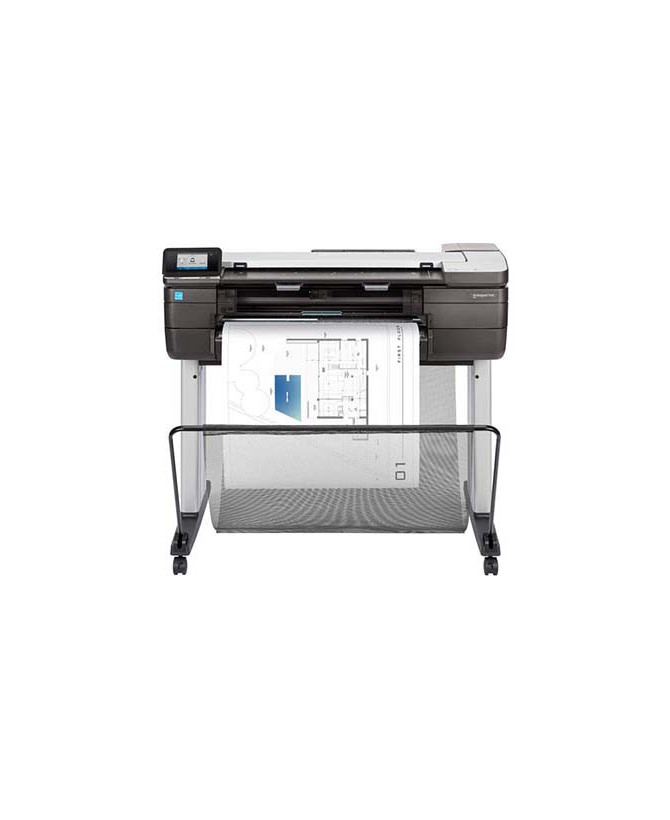

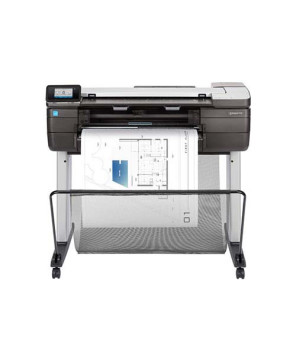

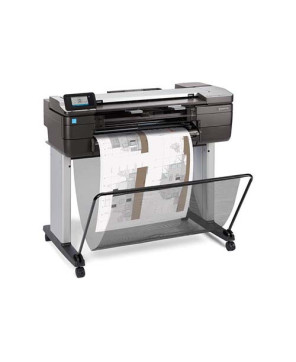

HP DesignJet T830 24" Multifunction Large Format Printer F9A28E
The HP DesignJet F9A28E is the most compact 24-inch multifunction printer. With a sleek and integrated design, it is ideal for the office and construction job site.
The HP DesignJet F9A28E is the most compact 24-inch multifunction printer. With a sleek and integrated design, it is ideal for the office and construction job site.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 12-month manufacturer's warranty.
FEATURES
• Print A1/D-size in 26 seconds.
• Print easily with HP Click software, and print from s smartphone or tablet with HP Mobile Printing.
• This reinforced, all-in-one printer with smart scanning handles all your document management from office to construction site.
• Use built-in scanner to copy and distribute sketches and hand-annotated drawings to peers/partners right away.
QUICK SPECIFICATIONS
PRINT SPECIFICATIONS
• Print technology: HP Thermal Inkjet
• Average weekly print volume (D/A1): 90 A1/D prints per week
• Print languages: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF
• Model size: 610 mm
• Guaranteed minimum line width: 0.07 mm (ISO/IEC 13660:2001(E))
• Guaranteed minimum line width footnote: Measured on HP Matte Film
• Theoretical minimum line width: 0.02 mm (HP-GL/2 addressable)
• Line accuracy: ±0.1%[2]
• Line accuracy note: ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A1/D HP Heavyweight media in Best or Normal mode with Original HP inks
• Print speed: 26 sec/page on A1, 81 A1 prints per hour
• Print speed line drawing (economode, A1 plain paper): 81 A1 prints per hour
• Print time line drawing (economode, A1 plain paper): 26 sec/page
• Maximum optical density (black): 8 L* min/2.10 D
• Print quality color (best): Up to 2400 x 1200 optimized dpi
• Maximum optical density footnote (black): With HP Premium Instant Dry Photo Gloss media with Original HP inks.
• Non-printable area (cut-sheet): 5 x 5 x 5 x 5 mm
• Non-printable area (roll media): 5 x 5 x 5 x 5 mm
• Printing path: Wi-Fi Direct to enable mobile printing via HP ePrint, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and macOS printer drivers, print from USB pen drive
• Printer drivers included: HP-GL/2, HP-RTL drivers for Windows; Raster driver for macOS and Windows
• Internal Storage: None
• Memory: 1 GB
SCANNER SPECIFICATIONS
• Scanner type: Sheetfed, CIS (Contact Image Sensor)
• Scan size, maximum: 610 mm x 2.77 m
• Scan size, minimum: 203 x 127 mm
• Scan file format: JPEG, PDF, TIFF
• Scan input modes: Scan to email, scan to cloud (through HP Smart app), network, USB, computer, mobile
• Maximum media thickness: 0.8 mm
• Linear scan speed: Up to 3.81 cm/sec (color, 200 dpi); Up to 11.43 cm/sec (grayscale, 200 dpi)
• Scan speed footnote: Measured at 200 dpi in color and grayscale
• Scan Resolution, Optical: Up to 600 dpi
• Enhanced scanning resolution: 600 dpi
COPIER SPECIFICATIONS
• Copier settings: Content type; Lighter/Darker; Background noise removal; Background color removal; Blue print invert; Translucent media; Color; Scan full width (24-in); Auto De-skew; Resize; Copy Margins; Quality
• Copies, maximum: Up to 99 copies
• Copy reduce / enlarge settings: 50 to 400%
CONNECTIVITY AND COMMUNICATIONS
• Connectivity, standard: Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
• Connectivity, optional: HP USB 3.0 to Gigabit LAN Adapter
• Network ready: Standard
• HP ePrint capability: Yes
• Mobile printing capability: Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing via HP ePrint, Apple AirPrint™ and HP Smart App. Supports printing from most smartphones and tablets using these operating systems: Android, iOS
POWER
• Power Consumption Description: 35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
• Power: Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max
CARTRIDGES AND PRINTHEADS
• Number of print cartridges: M, Y, mK)
• Print cartridge volume delivered: HP 728 Ink Cartridge: matte black, cyan, magenta, yellow (300 ml); cyan, magenta, yellow (130 ml); matte black (69 ml); cyan, magenta, yellow (40 ml)
• Print heads: 1 (C, M, Y, mK)
• Print head nozzles: 1376
• Ink drop: 6 pl (C, M, Y); 12.6 pl (mK)
• Ink types: Dye-based (C, M, Y); pigment-based (mK)
SUPPORTED PRINTING MEDIA
• Finished output handling: Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter
• Media types: Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
• Media sizes supported: Input tray: A4, A3; Manual feed: A2, A1
• Media sizes, custom: Input tray: 210 x 279 to 330 x 482 mm; Manual feed: 330 x 482 to 610 x 1897 mm
• Media sizes standard (metric rolls): 279 to 610 mm
• Media width, maximum: 610 mm
• Media weight, recommended: 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)
• Media thickness: Up to 11.8 mil
• Roll external diameter: 100 mm
• Roll maximum input: 1
• Roll maximum weight: 4.1 kg
• Supported Primary Applications: Line drawings; Renderings; Presentations
ENVIRONMENTAL
• Operating temperature range: 5 to 40ºC
• Storage temperature range: -25 to 55ºC
• Operating humidity range: 20 to 80% RH
• Non-Operating Humidity Range: 0 to 95% RH
• Acoustic power emissions: 6.5 B(A) (operating), <3.4 B(A) (idle)
• Acoustic pressure emissions: 48 dB(A) (operating), <16 dB(A) (idle)
DIMENSIONS AND WEIGHT
• Dimensions without stand (W x D x H): 1098 x 605 x 1155 mm
• Package dimensions (W x D x H): 1310 x 570 x 645 mm
• Weight: 46.7 kg
• Package weight: 65.7 kg
COMPATIBLE CARTRIDGE
• HP 728 130-ML CYAN DesignJet Ink Cartridge F9J67A
• HP 130ML MAGENTA DesignJet Ink Cartridge F9J66A
• HP 130ML YELLOW DesignJet Ink Cartridge F9J65A
• HP 728 300-ML CYAN DesignJet Ink Cartridge F9K17A
• HP 728 300-ML MAGENTA DesignJet Ink Cartridge F9K16A
• HP 728 300-ML YELLOW DesignJet Ink Cartridge F9K15A
WHAT'S INCLUDED
• HP DesignJet T830 24-in MFP
• Printhead
• Ink cartridges
• Printer stand
• Spindle
• Quick reference guide
• Setup poster
• Startup software
• Power cord
• Refeed preventers
Do you have a question about this product? Please call 1800 90 90 99.
