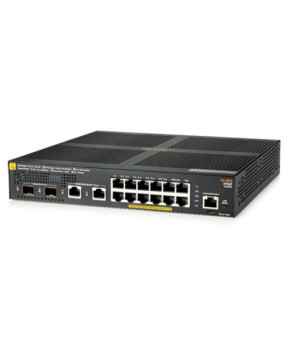

HPE Aruba 2930F 12-port PoE+ with 2 X SFP+ port Switch JL693A

The HPE Aruba 2930F 12-port PoE+ with 2 X SFP+ port Switch JL693A is part of the Aruba 2930F Switch Series that is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power and are simple to deploy and manage with advanced security and networking management tools like Aruba ClearPass Policy Manager, Aruba AirWave, and cloud-based Aruba Central.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with Limited lifetime manufacturer's warranty.

• Flow control
• full duplex capability
• DHCP support
• BOOTP support
• ARP support
• VLAN support
• IGMP snooping
• Syslog support
• DiffServ support
• IPv6 support
• SNTP support
• sFlow
• Spanning Tree Protocol (STP) support
• Multiple Spanning Tree Protocol (MSTP) support
• Trivial File Transfer Protocol (TFTP) support
• Access Control List (ACL) support
• Quality of Service (QoS)
• Jumbo Frames support
• DHCP server
• MLD snooping
• STP Root Guard
• Uni-Directional Link Detection (UDLD)
• LLDP support
• DHCP relay
• Link Aggregation Control Protocol (LACP)
• Management Information Base (MIB)
• MAC address lockout
• dynamic ARP protection
• DHCP protection
• Dynamic VLAN Support (GVRP)
• Multiple VLAN Registration Protocol (MVRP)
• Neighbor Discovery Protocol (NDP)
• Class of Service (CoS)
• SNMP support
• Type of Service (ToS)
• OpenFlow support
• CPU protection
• Internet Control Message Protocol (ICMP)
• ICMP Router Discovery Protocol (IRDP)
• Virtual Extensible LAN (VXLAN)
• Management Information Base (MIB) II

• Enclosure Type: Rack-mountable 1U
• Subtype: Gigabit Ethernet
• Ports: 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) + 2 x 10/100/1000
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 139 W
• Performance: Throughput: 41.7 Mpps ¦ Switching capacity: 68 Gbps ¦ Latency (1 Gbps): 3.8 µs ¦ Latency (10 Gbps): 1.6 µs
• Capacity: Jumbo frame size: 9220 ¦ IPv4 routing table entries: 2000 ¦ IPv6 routing table entries: 1000
• MAC Address Table Size: 32K entries
• Routing Protocol: OSPF, RIP, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
• Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SSH, SSH-2, CLI, XRMON
• Encryption Algorithm: MD5, SSL
• Authentication Method: RADIUS, PAP, CHAP, TACACS, TACACS+
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
• Processor: 1 x ARM Cortex-A9: 1.016 GHz
• RAM: 1 GB DDR3 SDRAM
• Flash Memory: 4 GB

• HPE Aruba 2930F 12-port PoE+ with 2 X SFP+ port Switch JL693A
• User Guide
