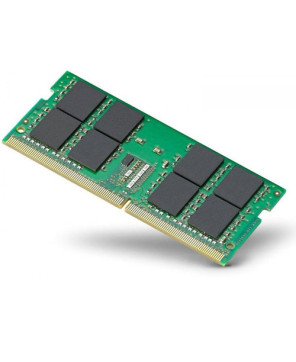

Kingston ValueRAM 16GB DDR4 3200MHz SoDIMM Memory Module KVR32S22D8/16 for Notebook Laptop

The Kingston ValueRAM Memory Module KVR32S22D8/16 is a 16GB DDR4 3200MHz SODIMM memory module that is based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.

You may also check all the Computer Memory , we have at The Telecomshop.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 120-month manufacturer's warranty.

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free

• Memory Capacity: 16GB
• Module Quantity: 1 Module
• Speed (Data Rate): 3200MT/s (PC4-25600)
• Module Type: SODIMM
• Error Check: Non-ECC
• Model/Series/Type: ValueRAM
• CAS Latency: CL22
• Form Factor: DDR4
• Rank: 2R (Dual Rank)
• Pins: 260 Pin
• Operating Temperature: 0°C to 85°C
• DRAM Density: 8Gbit
• Memory Voltage: 1.2v
• Memory Depth: 2G
• Product Condition: New
• Product Type/Family: RAM
• Data Width: X64
• Chip Organization: x8

• Kingston ValueRAM 16GB DDR4 3200MHz SODIMM Memory Module KVR32S22D8/16
