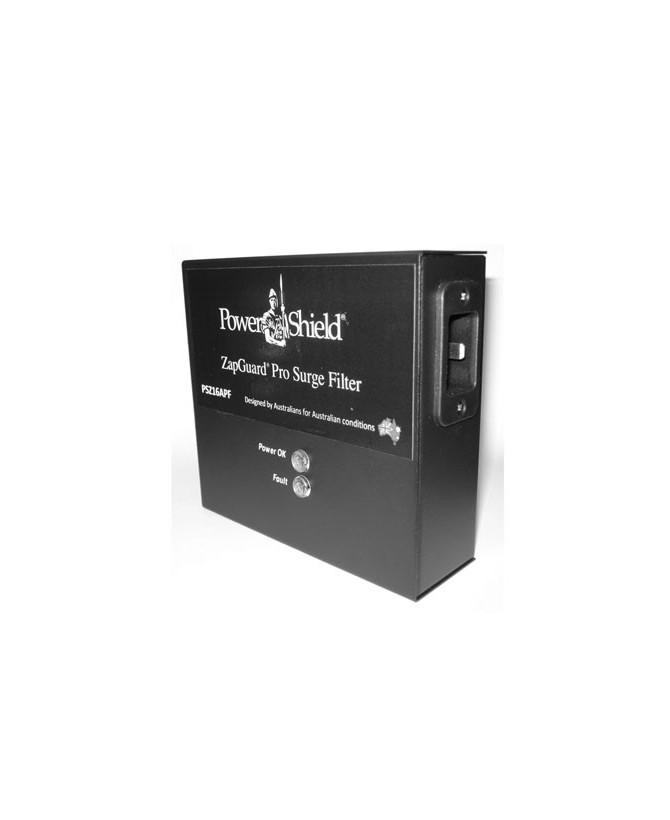

PowerShield 16 Amp Surge Filter PSZ16APF
The Powershield PSZ16APF 16 Amp Surge Filter is designed to provide secondary protection and is particularly suitable for use with plug-in UPS systems, servers, instrumentation, and POS systems, specialised industrial and commercial portable equipment where a high degree of protection is required.
The Powershield PSZ16APF 16A power filter provides secondary protection for critical industrial equipment in locations prone to unreliable electrical supply. Ideally suited for use in conjunction with UPS systems or as secondary surge protection connected in line at the equipment location. Excess voltage transients are diverted to neutral and earth, limiting the damage to the connected appliance. Once the spike condition is alleviated, the unit returns to normal operation. Designed for commercial installations with mission critical equipment such as servers, medical appliances etc.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 12-month manufacturer's warranty.
FEATURES
• IEC input and output
• 2 part display
• 3 stage, 3 mode protection
• LC filter network
• Rugged IP24 enclosure
• 10A and 16A versions
• Surge protection and EMI / RFI filter
• 40kA Imax L-N. 60kA all modes
QUICK SPECIFICATIONS
• Product Type: Surge Filter
• Ports: 2 ports series connected
• MCOV: Uc 320Vac L-N, 255VAC N-E
• TOV: 350Vac L-N
• Imax: 8/20us 40kA L-N, 10kA L-E, 10kA N-E
• Service type: 1 Phase, Line/Neutral/Earth 10A or 15A IEC to IEC
• Vpl Up: <1.1kV L-N @3kA
• Leakage current: <5mA
• Filter attenuation: >40dB at 1MHz
• Enclosure material: Powder coated steel
• Weight: 1.35 kg
• Dimensions: 150 × 50 × 130 mm
• Filters - Phase: Single Phase
WHAT'S INCLUDED
• 1x PowerShield 16 Amp Surge Filter
• 1x User Guide
Do you have a question about this product? Please call 1800 90 90 99.
The Powershield PSZ16APF 16 Amp Surge Filter is designed to provide secondary protection and is particularly suitable for use with plug-in UPS systems, servers, instrumentation, and POS systems, specialised industrial and commercial portable equipment where a high degree of protection is required.
