Add New Headset During a Call
Introduction
For WH62/WH63/WH66/WH67, up to 4 headsets can be connected to one base for conferencing.
For WH62/WH63/WH66/WH67
Before You Begin
You need to power on the new headset.
Procedure

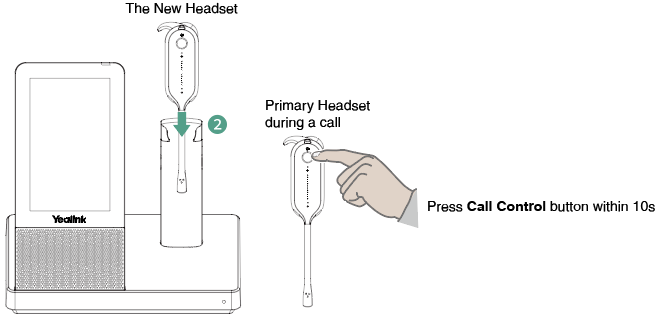

1. Dock the new headset in the primary headset's base when you are on a call with the primary headset.
2. Press the Call Control button on the primary headset within 10 seconds to accept the new headset to join the conference.
3. The primary headset prompts "New Headset Joined", and the new headset prompts "Headset Connected".
Once the primary headset establishes the call, the audio will be shared between headsets. When the call ends, the additional headset will disconnect from the base.
By default, the new headset is muted after pairing.
Only for WH66/WH67
Before You Begin
You need to power on the new headset.
Procedure
1. Dock the new headset in the base when you are on a call with the primary headset.
2. Go to
or
> Add Headset.
3. Dock the new headset in the base.
4. Press the Call Control button on the primary headset within 10 seconds to accept the new headset into the conference.
5. The primary headset prompts "New Headset Joined", and the new headset prompts "Headset Connected".
Once the primary headset establishes the call, the audio will be shared between headsets. When the call ends, the additional headset will disconnect from the base.
By default, the new headset is muted after pairing.
Important:
- When the call ends, the new headset will disconnect from the base. If you do not want to disconnect new headsets from the base, enable Permanent Conference Mode via the Yealink USB Connect software.
- Different headsets use their own tuning settings while in conferencing mode. You can mute and adjust the volume on your headset without affecting paired headsets.
Add New Headset When Base is Idle
Note: Up to three headsets can be connected to one base for conferencing.
For WH62/WH63/WH66/WH67
Before You Begin
You need to power on the new headset.
Procedure

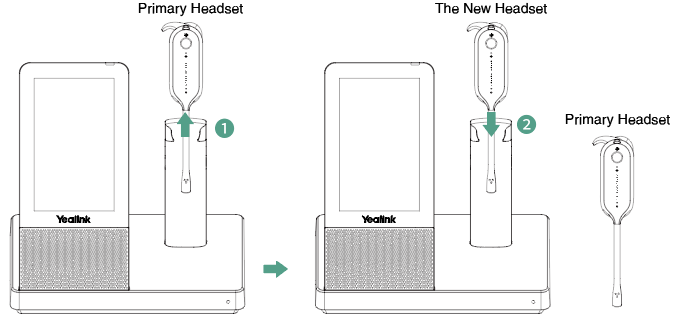

- Undock the primary headset.
- Dock the new headset in the base.
- Press the Call Control button on the primary headset within 10 seconds to accept the new headset into the conference.
- The primary headset prompts "New Headset Joined", and the new headset prompts "Headset Connected".
Once the primary headset establishes the call, audio will be shared between headsets. When the call ends, the additional headset will disconnect from the base.
By default, the new headset is muted after pairing.
Only for WH66/WH67
Before You Begin
You need to power on the new headset.
Procedure
1. Go to
or
> Settings > Basic Settings > Add Headset.
2. Tap Add and dock the new headset in the base.
3. Press the Call Control button on the primary headset within 10 seconds to accept the new headset.
4. The primary headset prompts "New Headset Joined", and the new headset prompts "Headset Connected".
Once the primary headset establishes the call, audio will be shared between headsets. When the call ends, the additional headset will disconnect from the base.
By default, the new headset is muted after pairing.
Important:
- Enable Permanent Conference Mode via Yealink USB Connect if you want new headsets to remain paired after calls end.
- Different headsets use their own tuning settings while conferencing. Volume and mute controls only affect the headset being adjusted.
Add New Headset Without Docking
Note: Up to three headsets can be connected to one base for conferencing.
WH62/WH63

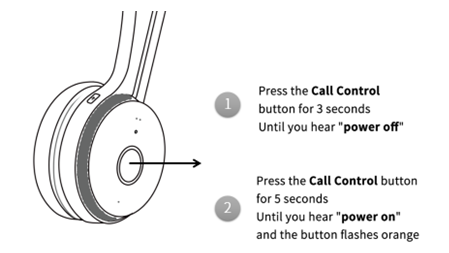

1. Power off the new headset by pressing the Call Control button for 3 seconds until you hear "Power Off".
2. Power on the headset and hold the Call Control button for 5 seconds until you hear "Power On, Pairing Mode". The button flashes orange.
3. Put the base into pairing mode.
When WH62/WH63 is in an idle state, press the PC button for 5 seconds until the button flashes green and white.
4. Press the Call Control button on the primary headset within 10 seconds to accept the new headset.
The primary headset prompts "New Headset Joined", and the new headset prompts "Headset Connected".
WH66/WH67
1. Power off the new headset by pressing the Call Control button for 3 seconds until you hear "Power Off".
2. Power on the headset and hold the Call Control button for 5 seconds until you hear "Power On, Pairing Mode". The button flashes orange.
3. Put the base into pairing mode.

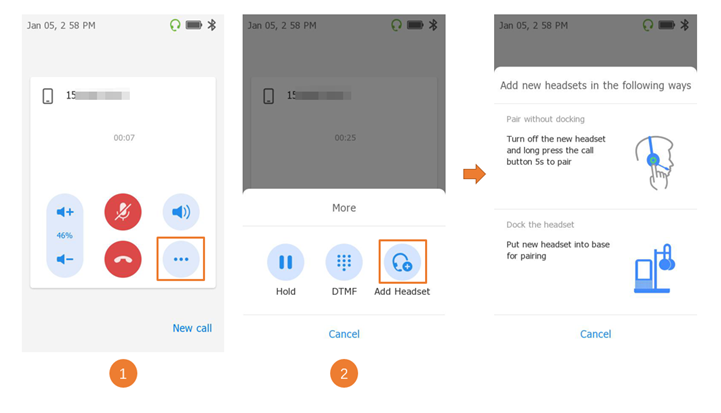

When WH66/WH67 is used during a call, go to Add Headset > Pair without docking.
4. Press the Call Control button of the primary headset within 10 seconds to accept the new headset into the conference.
The primary headset prompts "New Headset Joined", and the new headset prompts "Headset Connected".
End or Leave Conference Call
Note: Up to three headsets can be connected to one base for conferencing.
To End the Conference for All Headsets
- Press the Call Control button on the primary headset, or
- Dock the primary headset in the base.
To Leave the Conference
- Press the Call Control button on the new headset.
- The conference call will continue for all remaining connected headsets.
