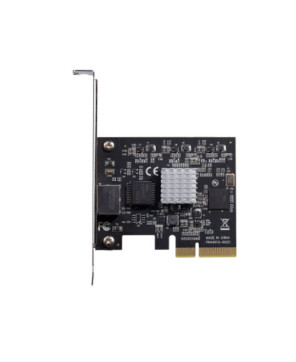

Startech 1 Port PCI Express 10GBase-T/NBASE-T Ethernet Network Card ST10GSPEXNB
Manufacturer :Startech
Warranty :24-months
This Startech ST10GSPEXNB 5-speed network adapter card offers versatile and cost-efficient network connectivity. It lets you add an Ethernet port to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G 1G, and 100Mbps.
Special Offers
The Startech ST10GSPEXNB is designed for low-power, single-port network applications, the PCIe NIC offers a cost-effective and versatile networking solution by providing additional bandwidth to meet your network needs, without having to overhaul your infrastructure wiring. Fully compliant with 10GBase-T and NBASE-T™ specifications, the network card lets you add an Ethernet port to your server or high-powered workstation through a PCI Express x4 (or higher) slot. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)
You may also check all the computer accessories we have at The Telecomshop.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 24-month manufacturer's warranty.
FEATURES
• Cost-effective and versatile Ethernet connectivity supporting five network speeds: 10G, 5G, 2.5G
1G and 100Mbps
• Compliant with 10GBase-T and NBASE-T specifications
• IEEE 802.3az compliant energy-efficient chipset
• Virtualization (Microsoft Hyper-V®) and iSCSI support
• PCIe 2.0 x4 interface
• Supports 2.5 and 5Gbps network speeds on Cat5e cabling and 10Gbps on Cat6a
• Up to 9K jumbo frame support
• Supports 802.1q VLAN Tagging
• Full-duplex support
• Supports Auto-MDIX
• Supports Checksum Offload (IP, TCP, UDP) and Large Send Offload
• Configured with a standard profile bracket, includes a low profile/half-height bracket
QUICK SPECIFICATIONS
• Product Type: Gigabit Ethernet Card
• Host Interface: PCI Express x4
• Number of Network (RJ-45) Ports: 1
• Total Number of Ports: 1
• Media Type Supported: Twisted Pair
• Device Supported: Server
• Network Technology: 10GBase-T
• Weight (Approximate): 53.9 g
• Form Factor: Plug-in Card
• Length: 83.8 mm
• Height: 20.3 mm
• Width: 119.4 mm
• System Requirements:
Windows® 7, 8, 8.1, 10,
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019,
Mac OS® 10.12 to 10.14,
Linux 3.x to 4.14 LTS Versions only,
VMWare® ESXi 5.0/5.1/6.0/6.5
WHAT'S INCLUDED
• 1 x Port PCIe 5-speed Ethernet network card
• 1 x Driver CD
• 1 x Low profile mounting bracket
• 1 x Instruction manual
Do you have a question about this product? Please call 1800 90 90 99.
| Discontinued | No |
|---|---|
| Manufacturer | Startech |
| Icon | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Startech ST10GSPEXNB Data Sheet | 59.5 KB | Download |
