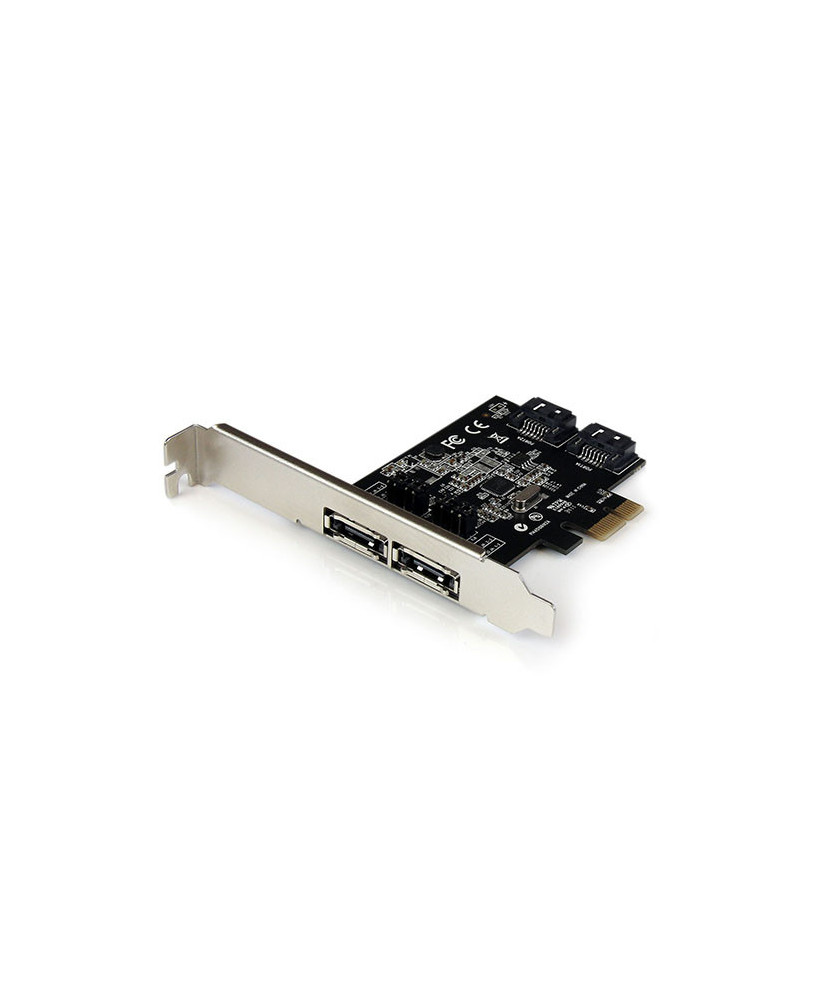

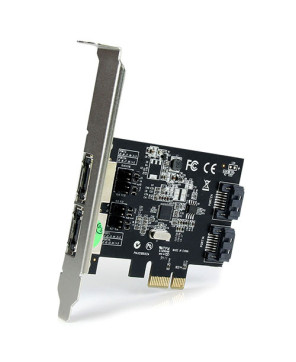

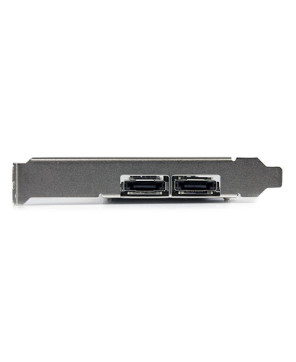

StarTech 2 Port PCI Express SATA 6 Gbps eSATA Controller Card PEXESAT322I
The StarTech PEXESAT322I is a PCI Express SATA III Controller Card (6 Gbps) that gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on-board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The StarTech PEXESAT322I is a PCI Express SATA III Controller Card (6 Gbps) that gives you the option to add 2 internal or external
SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on-board jumper
selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as
needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected
over a single cable when necessary to maximize the number of SATA device connections while reducing the amount
of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to
utilize the speeds of high-performance hard drives and Solid State Drives (SSD), as well as SATA-based optical
drives (CD-ROM, DVD-ROM, Blu-Ray).
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 24-month manufacturer's warranty.
FEATURES
• Two internal/external switchable SATA ports
• Compliant with SATA revision 3.0, which can support up to 6Gbps of bandwidth
• Support for SATA-based optical drives (CD/DVD/BD)
• Uses existing SATA I/II cabling
• Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands
• Port Multiplier FIS-based and Command-based switching supported
• Compliant with PCI Express 2.0 standards
• Includes Low Profile/Half-Height installation bracket
QUICK SPECIFICATIONS
• Product Description: StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - SATA III 6Gbps (PEXESAT322I) - storage controller - SATA 6Gb/s / eSATA 6Gb/s - PCIe x1
• Device Type: Storage controller - plug-in card - low profile
• Bus Type: PCIe x1
• Interface: SATA 6Gb/s / eSATA 6Gb/s
• Data Transfer Rate: 600 MBps
• Channel Qty: 2
• System Requirements: Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)
• Dimensions (WxDxH): 6.7 cm x 12.1 cm x 8 cm
• Weight: 60 g
• Designed For: P/N: S251SMU33EP, S3520BU33ER, S355BU33ERM, ST521PMINT
WHAT'S INCLUDED
• PCIe SATA Controller
• SATA Cable
• Low Profile Bracket
• Instruction Manual
Do you have a question about this product? Please call 1800 90 90 99.
The StarTech PEXESAT322I is a PCI Express SATA III Controller Card (6 Gbps) that gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on-board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
