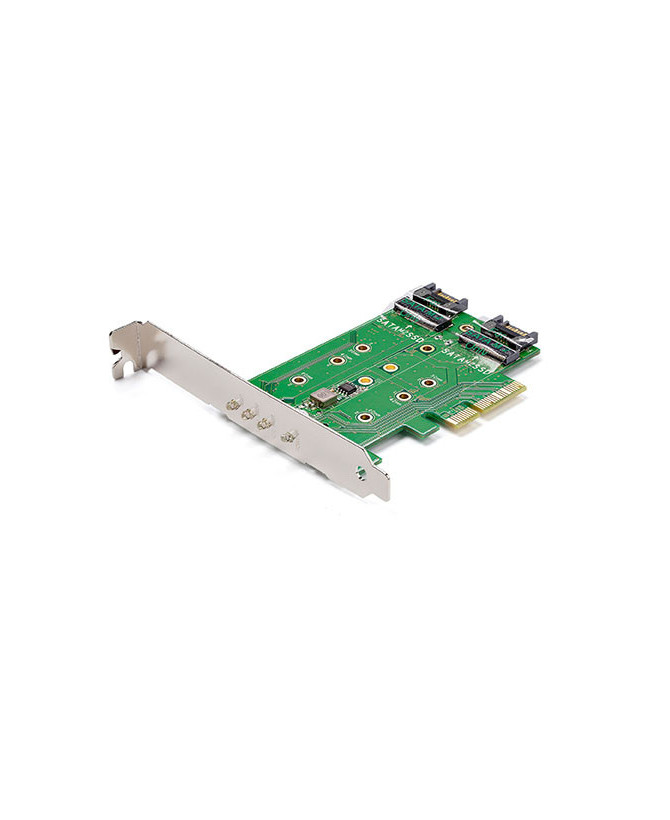

StarTech 3-Port M.2 SSD NGFF Adapter Card PEXM2SAT32N1
The Startech PEXM2SAT32N1 is a 3-port M.2 SSD adapter card that is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). It’s a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer.
The Startech PEXM2SAT32N1 is a 3-port M.2 SSD adapter card that is one of the only cards that supports both PCIe and SATA-based M.2 SSDs
(solid-state drives). It’s a versatile way to expand the overall storage capacity of your desktop PC or server. Plus,
because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer.
If you need a simple and discreet way to expand your computer’s storage, then this card can help. The card provides
a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2
SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to
expand the storage of your computer, regardless of the M.2 drive types you are using.
CONDITION
Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.
WARRANTY
This item comes with a 24-month manufacturer's warranty.
FEATURES
• Expand the storage and improve the performance of your computer, with slots for two M.2 SATA SSDs and one M.2
PCIe SSD
• Supports PCI Express 3.0 (x4), ideal for a high-performance M.2 PCIe SSD (NVMe)
• SATA slots feature a passthrough design, so your drives can connect to the SATA ports on your host PC
• Full bandwidth is available for each M.2 drive simultaneously (up to approximately 40Gbps for M.2 PCIe drives, and
up to 6Gbps for M.2 SATA III drives)
• Wide installation compatibility, with support for a range of M.2 drives (2280, 2260, 2242, 2230)
• Adjustable stand-offs and multiple mounting holes support 80 mm, 60 mm, 42 mm, and 30 mm SSDs
• OS independent with no drivers required, for a fast, hassle-free setup
• Equipped with a full-profile bracket, includes a low-profile (half-height bracket) for installation in small form-factor
computers
• Installs into x4, x8, or x16 PCIe slots
QUICK SPECIFICATIONS
• Product Description: StarTech.com 3-port M.2 SSD (NGFF) Adapter Card - Supports 1x PCIe (NVMe) M.2 SSD, 2x SATA III M.2 SSDs - PCIe 3.0 Adapter (PEXM2SAT32N1) - interface adapter - M.2 Card / SATA 6Gb/s - PCIe 3.0
• Device Type: Interface adapter - internal
• Bus Type: PCIe 3.0
• Compatible Bay: 1
• Hard Drive Form Factor Compatibility: M.2
• Interface: M.2 Card / SATA 6Gb/s
• Data Transfer Rate: 6 Gbit/s
• Supported Devices: Solid state drive
• Dimensions (WxDxH): 2 cm x 10 cm x 12 cm
• Weight: 100 g
WHAT'S INCLUDED
• 1x 3-port M.2 NGFF SSD adapter card
• 1x Low-profile bracket
• 2x M.2 mounting screws
• 2x M.2 mounting standoffs
• 2x M.2 mounting nuts
• 1x Screwdriver
• Quick-start guide
