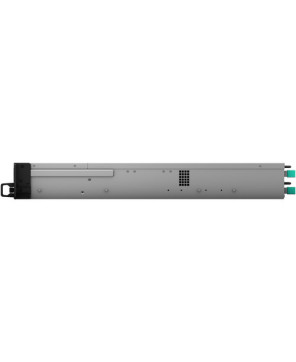

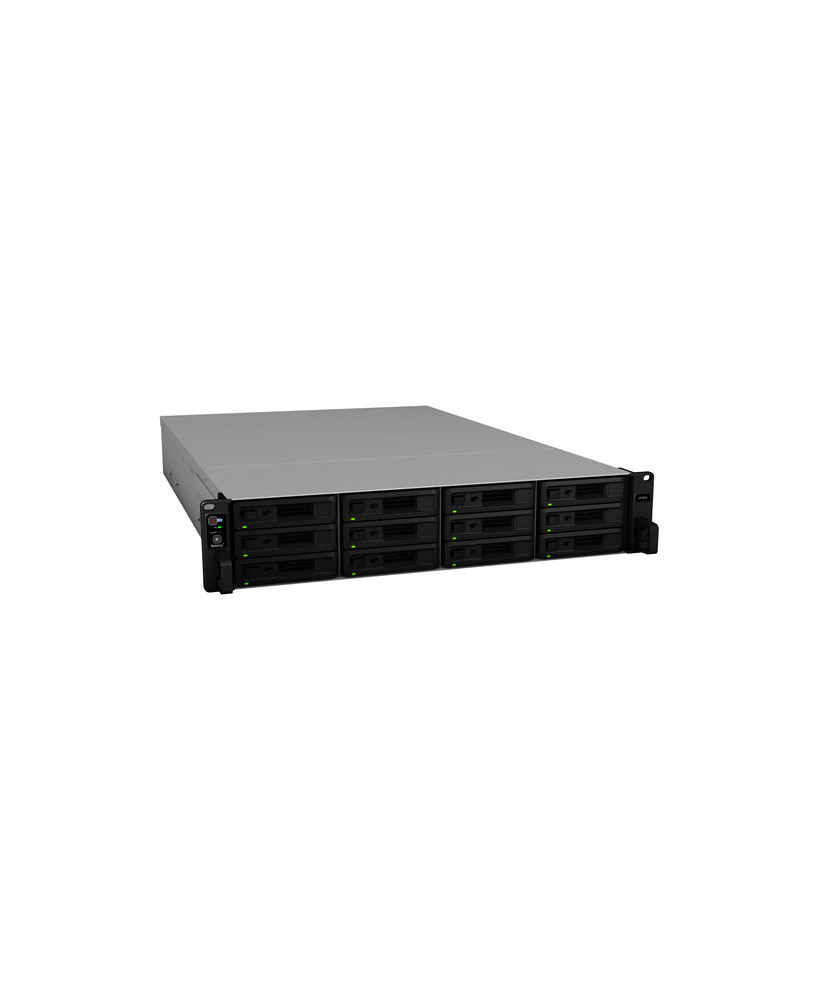

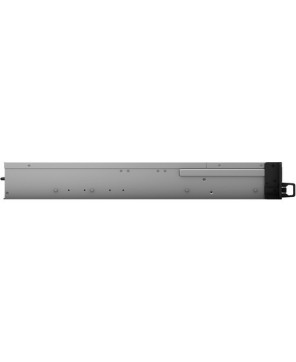

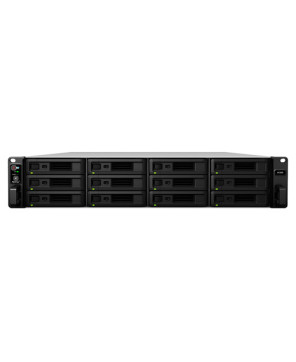

Synology 12 Bay Dual Controller NAS with Intel Xeon D-1521 8GB Processor UC3200

The Synology 12 Bay Dual Controller NAS with Intel Xeon D-1521 8GB Processor UC3200 is the ultimate solution for your storage needs. With a total capacity of 192TB spread across 12 2.5" / 3.5" SAS hard drive bays and two controller modules, this NAS is designed to handle even the most demanding data storage requirements. Powered by a 2.4 GHz Intel Xeon D-1521 Quad-Core processor with 8GB of DDR4 memory, the UC3200 ensures fast and efficient operation, allowing you to access and manage your data with ease.

One of the standout features of this NAS is its dual controller setup. These controllers work together simultaneously, syncing memory data through a non-transparent bridge (NTB). In the event of a catastrophic event, the controllers can automatically failover to each other, ensuring uninterrupted operation and minimal downtime. The UC3200 also supports up to 12 high-speed SAS drives, giving you a raw storage capacity of 192TB. With the ability to set up RAID 0, 1, 5, 6, 10, JBOD, and F1 configurations, you have the flexibility to choose the storage setup that best suits your needs. Snapshot replication is another key feature of the UC3200. This allows you to create application-aware snapshots for protection and virtual machine recovery in iSCSI LUNs. In the event of a disaster, you can rest assured knowing that your data is safe and can be recovered quickly and easily.

The UC3200 also offers redundant power supply, ensuring that your data remains secure even in the event of a power outage. With an integrated PCIe 3.0 slot, you have the flexibility to expand the capabilities of your NAS. Whether you need to add more storage or implement additional functionality, the UC3200 has you covered. This NAS is also fully compatible with VMware vSphere® 6.5, Microsoft Hyper-V®, and VAAI, allowing you to offload storage operations and optimize computational efficiency. In terms of compliance, the UC3200 meets all iSCSI standards, ensuring seamless integration with your existing infrastructure.

You may also check all the Synology Network Attached Storage we have at The Telecomshop.

Brand New - A brand-new, unused, unopened, undamaged item in its original packaging.

This item comes with a 60-months manufacturer's warranty.

• Dual Controllers
• Fast and Secure Data Capacity
• Snapshot Replication
• Redundant power supply
• PCIe 3.0 slot
• Active-active controller module
• Integrated with VMware vSphere® 6.5, Microsoft Hyper-V®, and VAAI to offload storage operations and optimize computational efficiency.
• Compliance with iSCSI industry standard ALUA allows hosts to identify the optimized paths to increase data transfer performance and efficiency.

• Number of Bays: 12 x 2.5"/3.5"
• Media Card Slots: None
• Maximum Filled Capacity: 192 TB, 576 TB (with Expansion)
• Connections: 4 x RJ45 (Gigabit Ethernet), 2 x RJ45 (10GbE), 2 x 9-Pin (Serial), 2 x Mini SAS (SFF-8644)
• Compatible Drive Interface: SAS
• Form Factor: Rackmount (2 RU)
• RAID Modes: RAID 0, 1, 10, 5, 6, F1, JBOD
• Hot-Swap Support: Yes
• Expansion Slots: 2 x PCIe 3.0 x8
• Link Aggregation and Failover Support: Yes
• Type: None
• Processor: 2 x Intel Xeon D-1521 Quad-Core
• Clock Speed: Base: 2.4 GHz / Maximum Boost: 2.7 GHz
• Total Installed Memory: 16 GB ECC DDR4
• User-Replaceable Memory: 2 x 8 GB
• Total Memory Slots: 8 x DIMM
• Maximum Memory Capacity: 128 GB
• Installed Operating System: None
• File System Formats Supported: Internal: Btrfs
• Power Consumption: 417.48 W (Typical)
274.38 W (Standby)
• Power Source: AC Adapter
• PSU Wattage: 2 x 500 W
• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• AC Input Power: VAC50 / 60 Hz
• Encryption: AES-NI
• Operating Temperature: 32 to 95°F / 0 to 35°C
• Operating Humidity: 5 to 95%
• Storage Temperature: -4 to 140°F / -20 to 60°C
• Cooling: 4 x 60 mm Fans
• Noise Level: 51.3 dBA
• Built-In Speakers: None
• Audible Alarm: None
• IR Sensor: None
• Status Monitoring: None
• Dimensions: 16.95 x 3.46 x 27.24" / 430.5 x 88 x 692 mm
• Weight: 43.43 lb / 19.7 kg
• Package Weight: 55 lb
• Box Dimensions (LxWxH): 32.8 x 23.9 x 9.3"

• 1 x Synology 12 Bay Dual Controller NAS with Intel Xeon D-1521 8GB Processor UC3200
• User Guide
