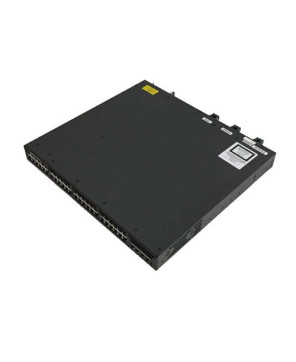

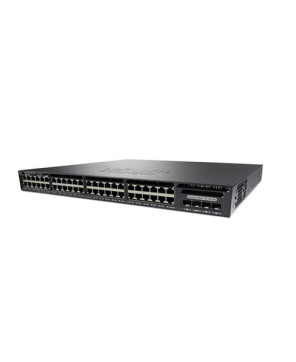

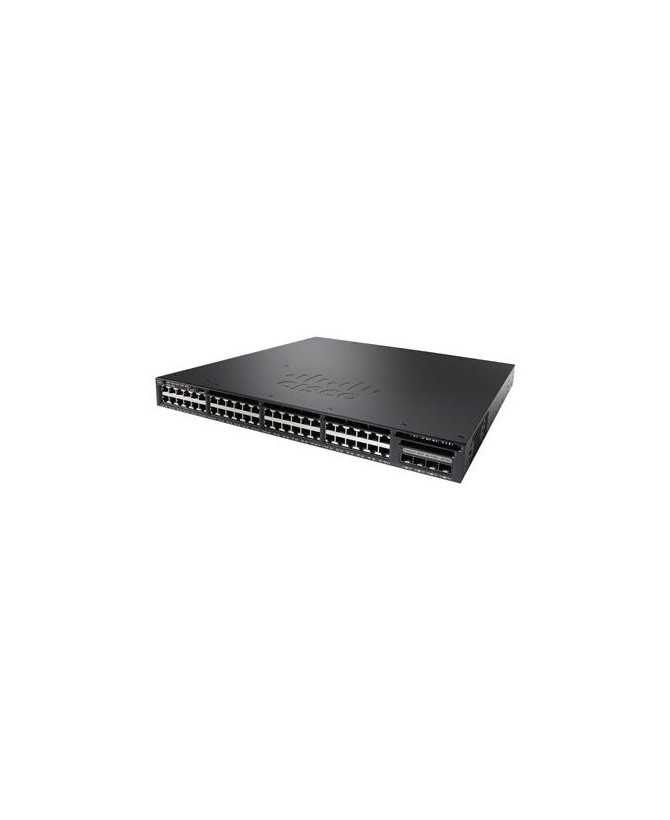

Cisco Catalyst 3650 48 Port Mini 4x10G Uplink IP Base Switch WS-C3650-48FQMS-RF

The Cisco Catalyst 3650 48 Port Mini 4x10G Uplink IP Base Switch WS-C3650-48FQMS-RF is a Cisco Switch rack-mountable 1U enclosure type with Gigabit Ethernet switch subtype that can deliver advanced security services, unified communications, wireless, IP video cameras, and other applications for office workspace. In addition, it provides 48 x 1000Base-T RJ-45 PoE+ - 30 W interface connection, 176 Gbps of switching capacity, 130.95 Mpps of forwarding performance, 4094 Virtual interfaces (VLANs) , 4Gb of RAM, and 2Gb of flash memory.

The Cisco WS-C3650-48FQMS-RF switch features full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), and DiffServ Code Point (DSCP) support.

Note: 3-4 weeks ETA

Manufacturer Refurbished - Cisco Refresh products have been remanufactured, have had critical engineering change orders made, and have been thoroughly tested and retested to meet stringent Cisco specifications. Cisco's rigorous and proprietary process ensures that our customers get genuine Cisco products, certified by Cisco.

If you want to know more about Cisco Refresh products, please download/click this FAQ.

This item is a remanufactured and supported by Cisco with a Enhanced Limited Lifetime Hardware Warranty.

• Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput
• Software support for IPv4 and IPv6 routing, multicast routing, modular QoS, Flexible NetFlow (FNF) Version 9, and enhanced security features
• IEEE 802.1ba Audio Video Bridging (AVB) built in to provide a better AV experience, including improved time synchronization and quality of service (QoS)
• Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for software features
• Dual redundant, modular power supplies and three modular fans providing redundancy
• Fixed built-in uplink ports and ship with one power supply
• Enhanced Limited Lifetime Hardware Warranty

• Switch - 48 ports - L3 - managed - stackable
• Rack-mountable 1U Enclosure Type
• Gigabit Ethernet Subtype
• Power Over Ethernet PoE+ supported
• 775 W PoE Budget
• Switching capacity: 176 Gbps
• Forwarding performance: 130.95 Mpps
• IPv4 routes: 24000
• Virtual interfaces (VLANs): 4094
• Switched virtual interfaces (SVIs): 1000
• Routing Protocol: OSPF, RIP-1, EIGRP, static IP routing, RIPng
• Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
• AC 120/230 V (50/60 Hz) Internal power supply
• 4 GB of RAM
• 2 GB of Flash Memory
• 48 x 1000Base-T RJ-45 PoE+ - 30 W
• 1 x USB Type A
• 1 x serial (console) RJ-45 management
• 1 x management (Gigabit LAN) RJ-45 management
• 1 x management (mini-USB) Type B management
• 4 x 10GBase-X SFP+ uplink
• Features full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), and DiffServ Code Point (DSCP) support
• Cisco IOS IP Base Software

• 1 x Cisco Catalyst 3650 48 Port Mini 4x10G Uplink IP Base Switch WS-C3650-48FQMS-RF
• User Guide
